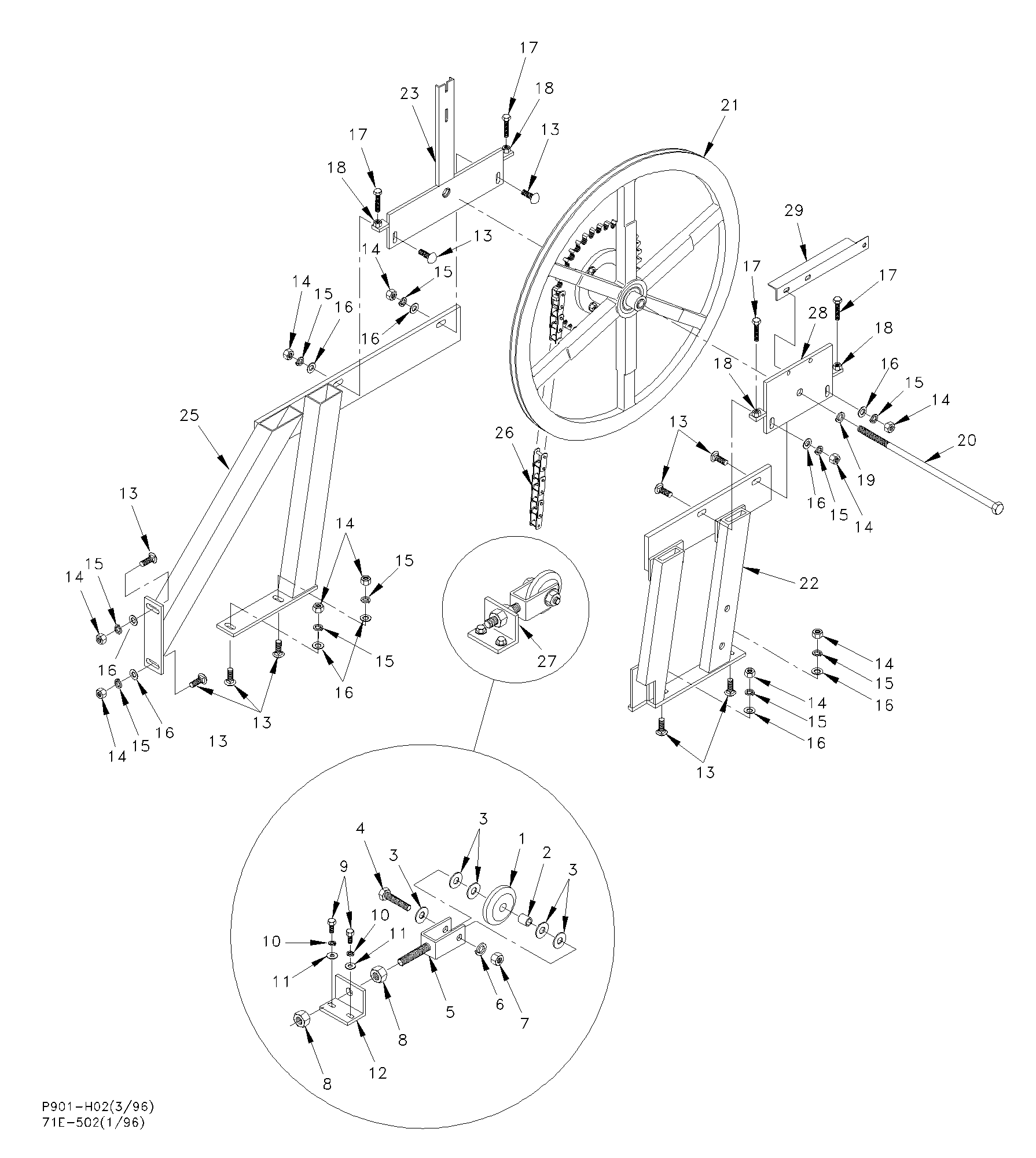

Handrail drive sheave support assy
Select a Part for Details:
1 - US60160 - ***REPLACED BY USP26650*** WHEEL,H.R. DRIVE TENSION
2 - US60161 - SLEEVE,ROLLER,5/8"ID
10 - US48731003 - WASHER,LOCK,SPRING, 3
11 - US49114011 - WASHER,FLAT,TYPE A,W,
14 - US48873005 - NUT,HEX,G2,PLATED, 1/2-13
15 - US48731005 - WASHER,LOCK,SPRING, 1/2
18 - US48839003 - NUT,HEX,JAM, UNC,3/8-
23 - USP26912 - PLATE ASSY,SHV SPT,UP OUT
26 - US58202 - CHAIN, HR DRIVE,RECT TRUSS #80, REPLACES US46764 (CL IS US46761, OL IS US46762), 123"
27 - USP26873 - TAKE-UP,HR DRIVE CHAIN
28 - USP26910 - PLATE,INNER SHEAVE SUPPORT
