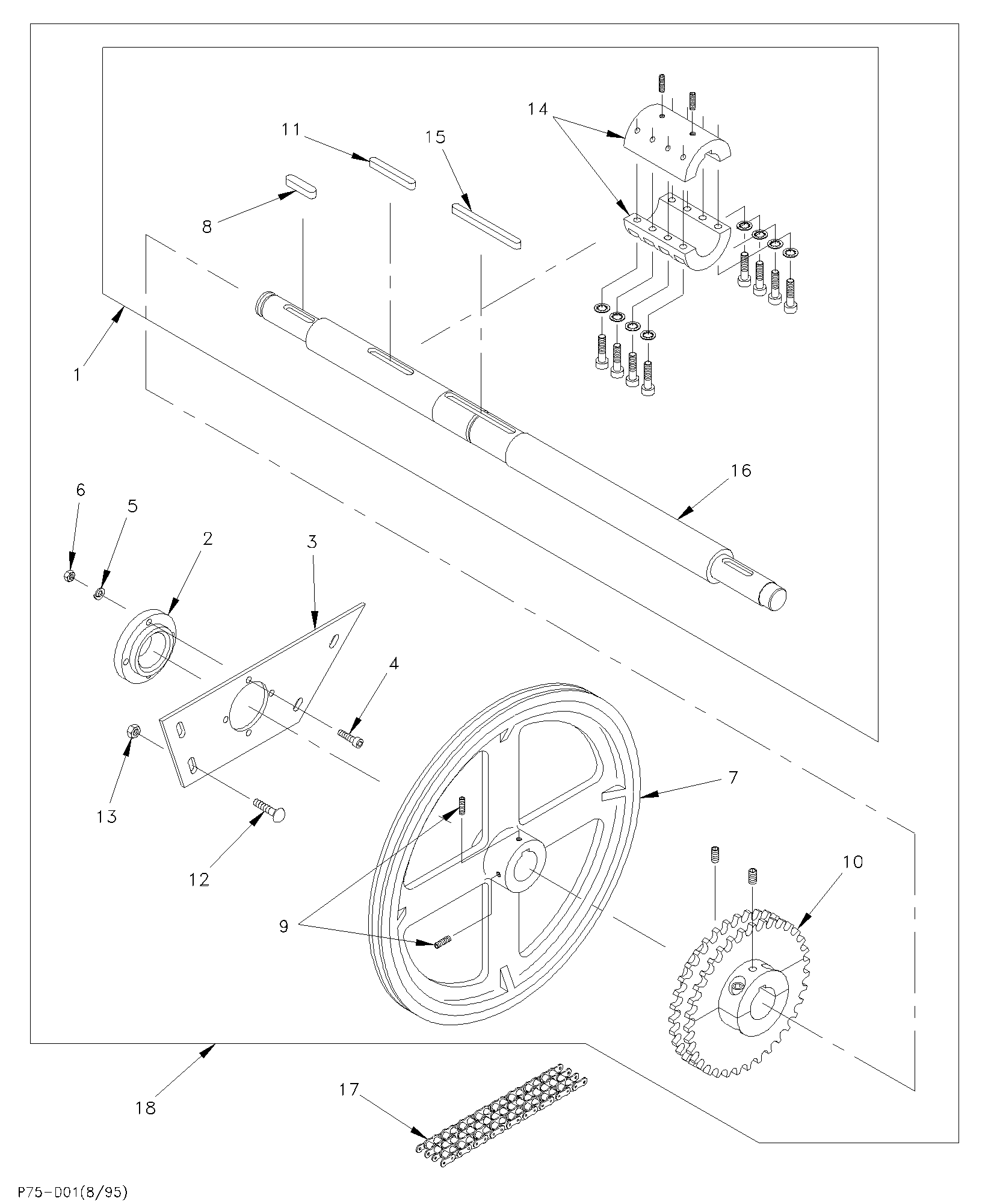

Handrail drive sheave assembly
Select a Part for Details:
2 - US67819 - BEARING,FLANG MNT,4.5 HOLE
0 - US44454 - BEARING,PILLOW BLOCK
5 - US48731005 - WASHER,LOCK,SPRING, 1/2
8 - US59043 - KEY,HANDRAIL DRIVE SHEAVE
17 - US60417 - CHAIN, HR DR, #80 DBL, 194", CL & OL, ONE BOX CONTAINS THE FOLLOWING: #80 DOUBLE STRAND 1" PITCH 193 PITCH + CONNECTING LINK + OFFSET LINK TOTAL LENGTH= 194" RIVETED CONSTRUCTION
Click to Enlarge
×
