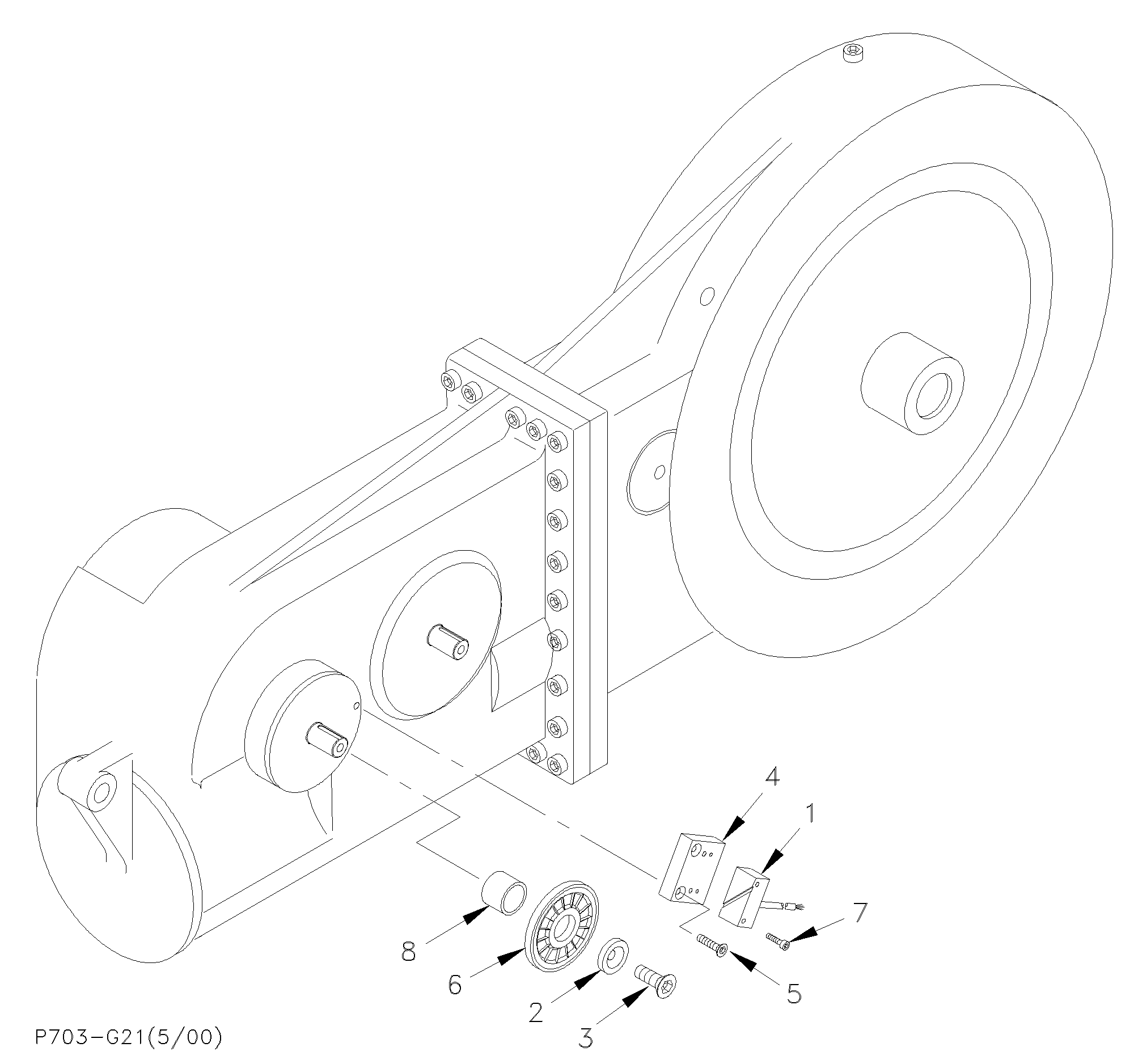

E-SERIES 5000 - Speed sensor assembly (used with S-controller)
Select a Part for Details:
1 - US94589020 - ***This part is obsolete. USE USP38046001 KIT*** ENCODER,HALL EFFECT,20FT For replacement of the E Series 5000 encoder mounted outboard of the transmission with an encoder mounted inboard of the transmission use USP38046001 kit. (Encoders that were provided "inboard of transmission [OEM]" use encoder US96210001 directly) For replacement of the HR Series (w/SMART control) encoder use KM51118611R01 kit.
2 - US69797001 - WASHER,PERMANENT BRAKE
3 - US68728001 - SCREW,FLT/SK,M10,L=16MM
6 - US94614002 - RING,ENCODER MAGNET MOUNTING
