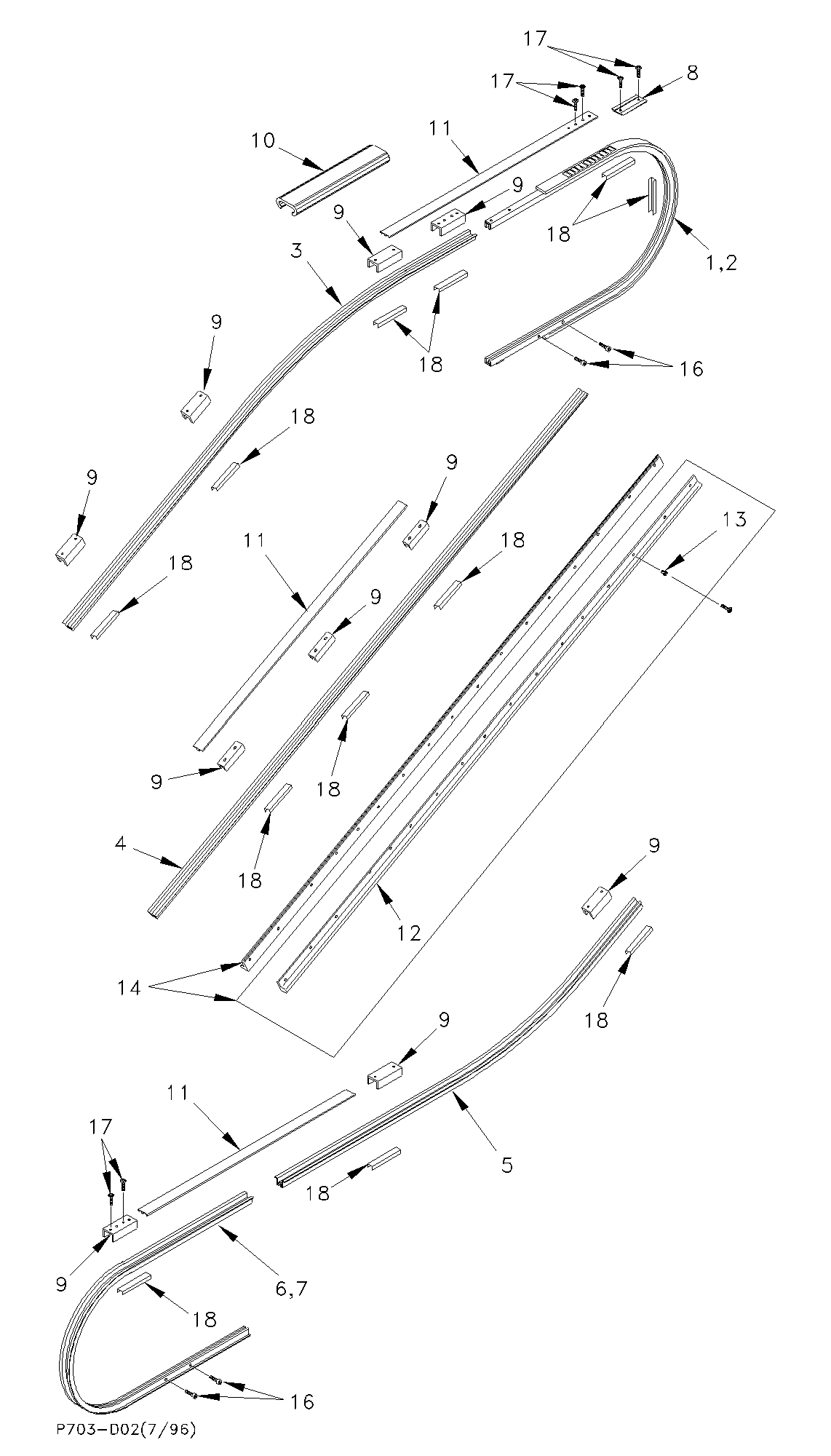

Handrail base, guides, air newels, & handrails
Select a Part for Details:
1 - USP32882001 - NEWEL, AIR, UP CURVE,ASSY,RH
1 - USP32903001 - AIR NEWEL,UP,ASSY,RH,3-LEV
2 - USP32882002 - NEWEL, AIR, UP CURVE,ASSY,LH
2 - USP32903002 - AIR NEWEL,UP CURVE,ASSY,LH
3 - US69861001 - BASE,HANDRAIL,UP CURVE
4 - US69242001 - BASE,HANDRAIL,INCLINE
5 - US69873001 - BASE,HANDRAIL,LOW CURVE
6 - US69240001 - ***REPLACED BY USP34378020*** BASE,HANDRAIL,LOW CURVE,LH
6 - US94791001 - ***REPLACED BY USP34546200*** BASE,HR,NEWEL,LW,1/2GL,LH
7 - US93179001 - ***REPLACED BY USP34378010*** BASE,HANDRAIL,LOW CURVE,RH
9 - US93112001 - WEDGE,HANDRAIL,HOLD DOWN
11 - US69161001 - GUIDE,HANDRAIL
12 - US69352001 - ***REPLACED BY USP32298001*** GUIDE,HANDRAIL,RETURN.
13 - US69849001 - INSERT,THREAD,BRASS,M5
14 - USP32298001 - GUIDE,HANDRAIL,RETURN. REPLACES US69352001
17 - US68726003 - SCREW,FLT/SK,M6,L=12MM
18 - US94100001 - RUBBER RIBBON, HR BASE
Click to Enlarge
×
