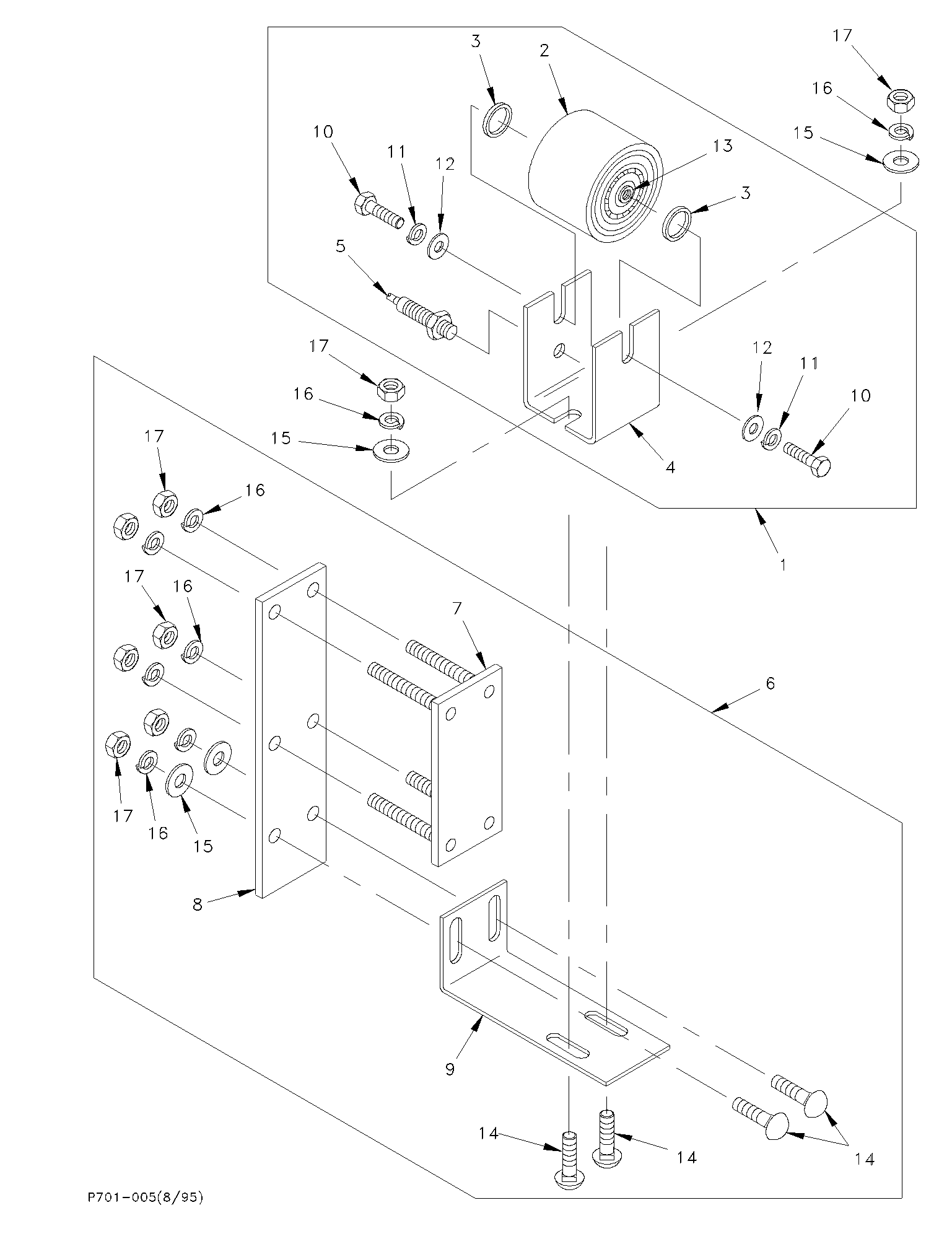

Handrail speed sensor - glass balustrade
Select a Part for Details:
1 - USP34651001 - HANDRAIL SPD SENSOR,ROLLER
2 - USP24811 - ***REPLACED BY KM5076345G01*** ROLLER,IDLER,HNDRAIL,wPINS -
3 - US44486 - SPACER,HANDRAIL WHEEL
5 - USP24860 - SENSOR,PROXIMITY,ESC,HNDRL
10 - US49389003 - SCREW,HHC/G2,5/16-18,
11 - US48731002 - WASHER,LOCK,SPRING, 5
12 - US49114010 - WASHER,FLAT,TYPE A,W,
13 - US44485 - SHAFT,ROLR CLSTR,CRYS
14 - US49488003 - BOLT,CRG/G5,3/8-16,1-1/4" REPLACES US29116001
15 - US49114011 - WASHER,FLAT,TYPE A,W,
16 - US48731003 - WASHER,LOCK,SPRING, 3
17 - US48873003 - NUT,HEX,G2,PLATED, 3
