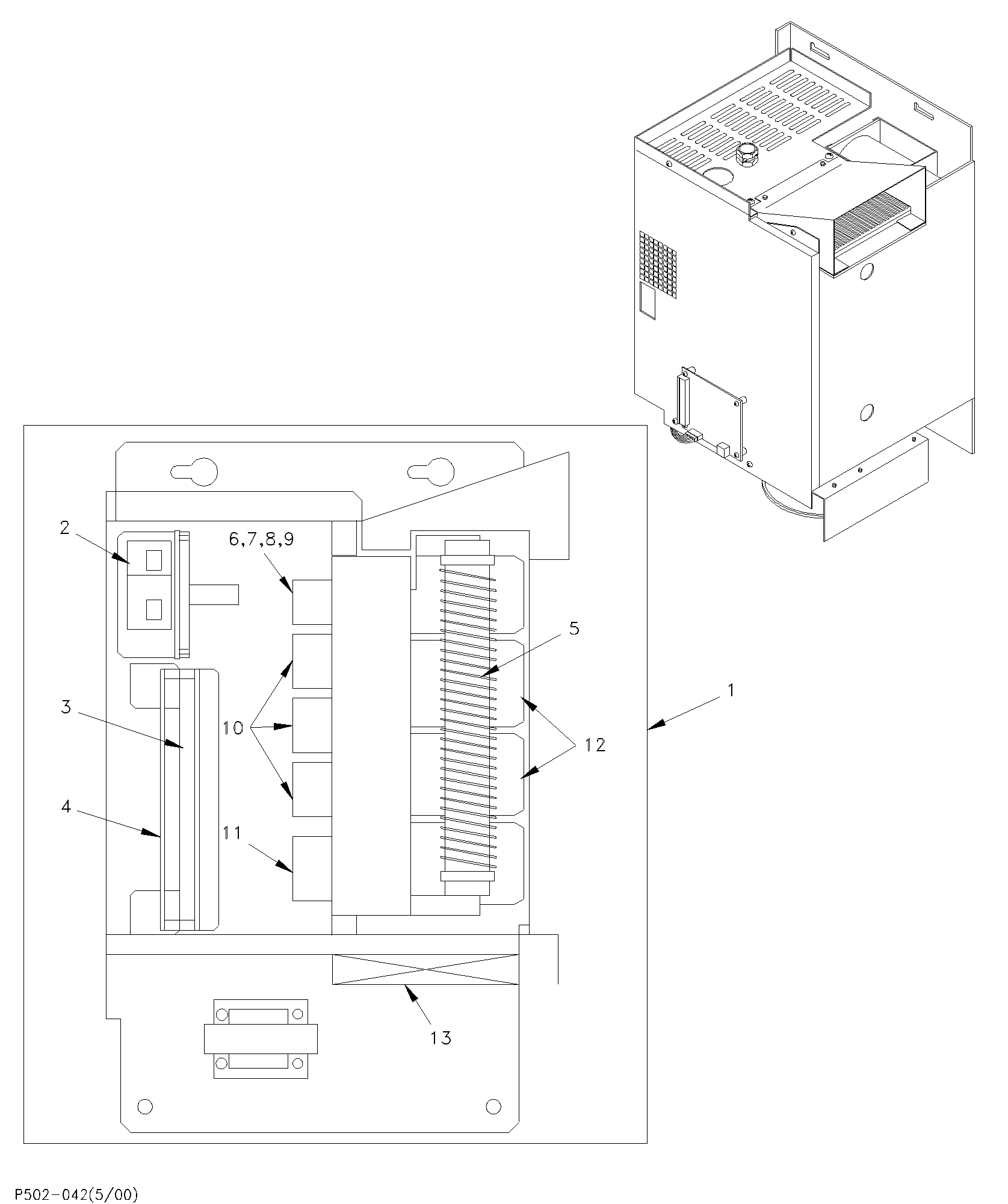

Miprom ST: V3F25 drive assembly
Select a Part for Details:
1 - KM713990G01 - ***REPLACED BY KM782999G01*** V3F25 DRIVE mODULE 40A
1 - KM713990G02 - ***REPLACED BY KM782999G02*** DRIVE MODULE, V3F25, 80A
2 - KM725810G01 - PC BOARD, CMB
3 - KM725800G01 - PC BOARD, INBH
4 - KM733473G01 - ***REPLACED BY KM781380G01*** PC BOARD, HCB (MOTION CONTROL BOARD)
5 - KM259796 - BRAKING RESISTOR 50 OHM (MODULE IS KM729845G02)
6 - KM265249 - TRANSISTOR, IGBT (BRAKE)
10 - KM259836 - TRANSISTOR,IGBT,40A,V3F-25
10 - KM264513 - TRANSISTOR,IGBT,80A,V3F-25
11 - KM260389 - BRIDGE, DIODE 40A
11 - KM260390 - BRIDGE, DIODE 80A
12 - KM713994G02 - DC LINK CAPACITOR MODULE 40AMP DRIVE
12 - KM713994G06 - DC LINK CAPACITOR MODULE 80AMP DRIVE
