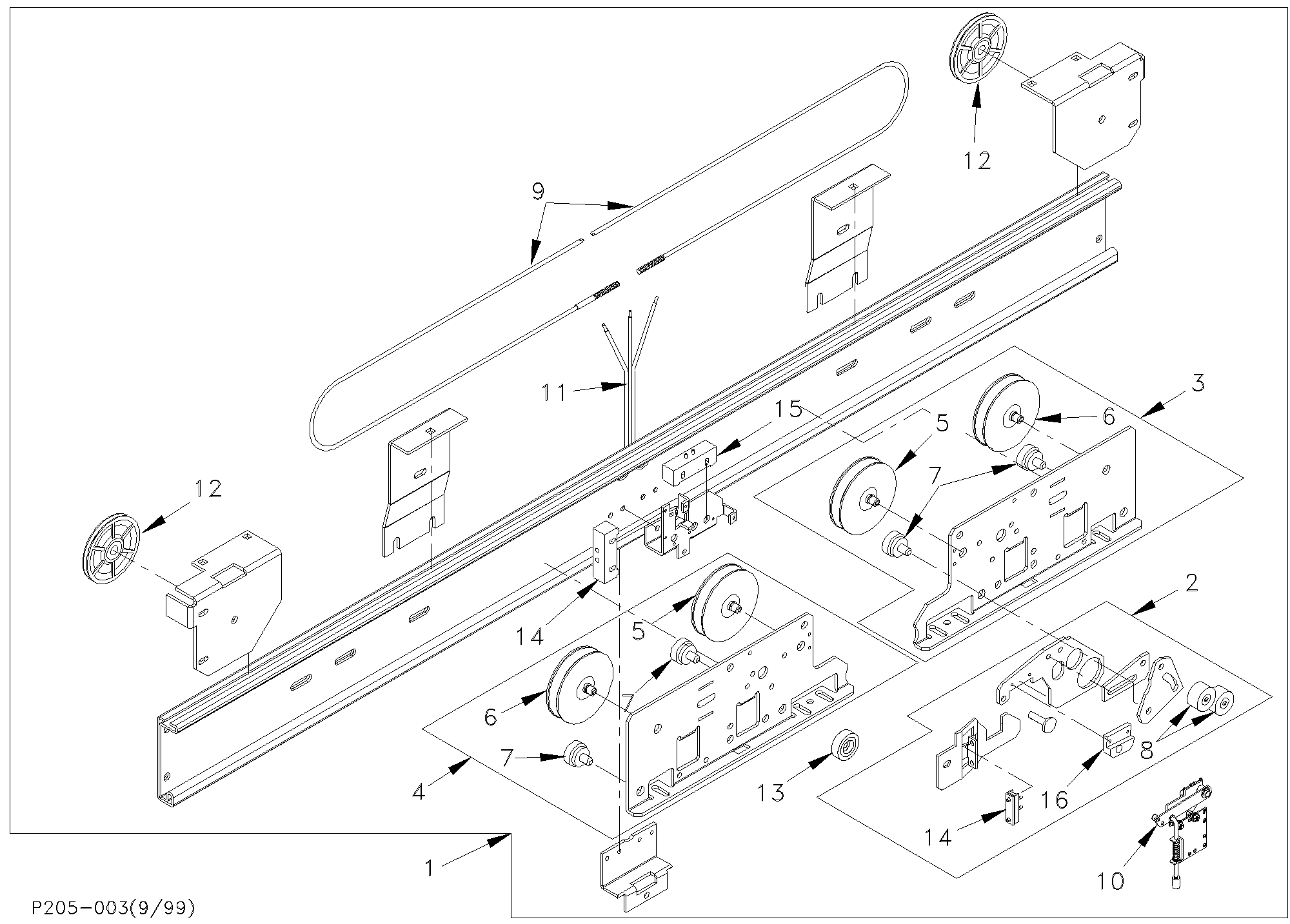

Hoistway header: center-opening - PE-4
Select a Part for Details:
2 - US77590004 - ***REPLACED BY KM603526G03*** DOOR LOCK,ASSY,AMD,CENTER OPENING
5 - US77590011 - ***REPLACED BY KM601106G01*** HANGER ROLLER, WITHOUT SHAFT,AMD
6 - US77590012 - ***REPLACED BY KM601106G02*** HANGER ROLLER,ASSY,AMD, ECC STUD, D94MM W=19MM
7 - US77590023 - ***REPLACED BY KM378032G01*** COUNTER ROLLER,UPTHRUS,AMD
8 - US77590013 - ***REPLACED BY KM601107G04*** ROLLER ONLY, AMD LOCK
11 - US77590018 - DOOR CONTACT CABLE,AMD
13 - US77590020 - ***REPLACED BY KM89639G02*** BUFFER, AMD
14 - US77590022 - DOOR CONTACT,AZ06,AMD REPLACES US77590100, US518209 & KM237487
15 - US77590021 - ***REPLACED BY KM254995*** DOOR CONTACT,AZ05K,AMD
16 - US77590024 - CONTACT BRIDGE, AZ06-13B/18 THIS IS A MALE CONTACT BRIDGE, SCHMERSAL AZ06-13B/18. KONE PART # IS KM254749. THIS CONTACT BRIDGE IS ALSO INCLUDED AS A PART OF KM237487.
Click to Enlarge
×
