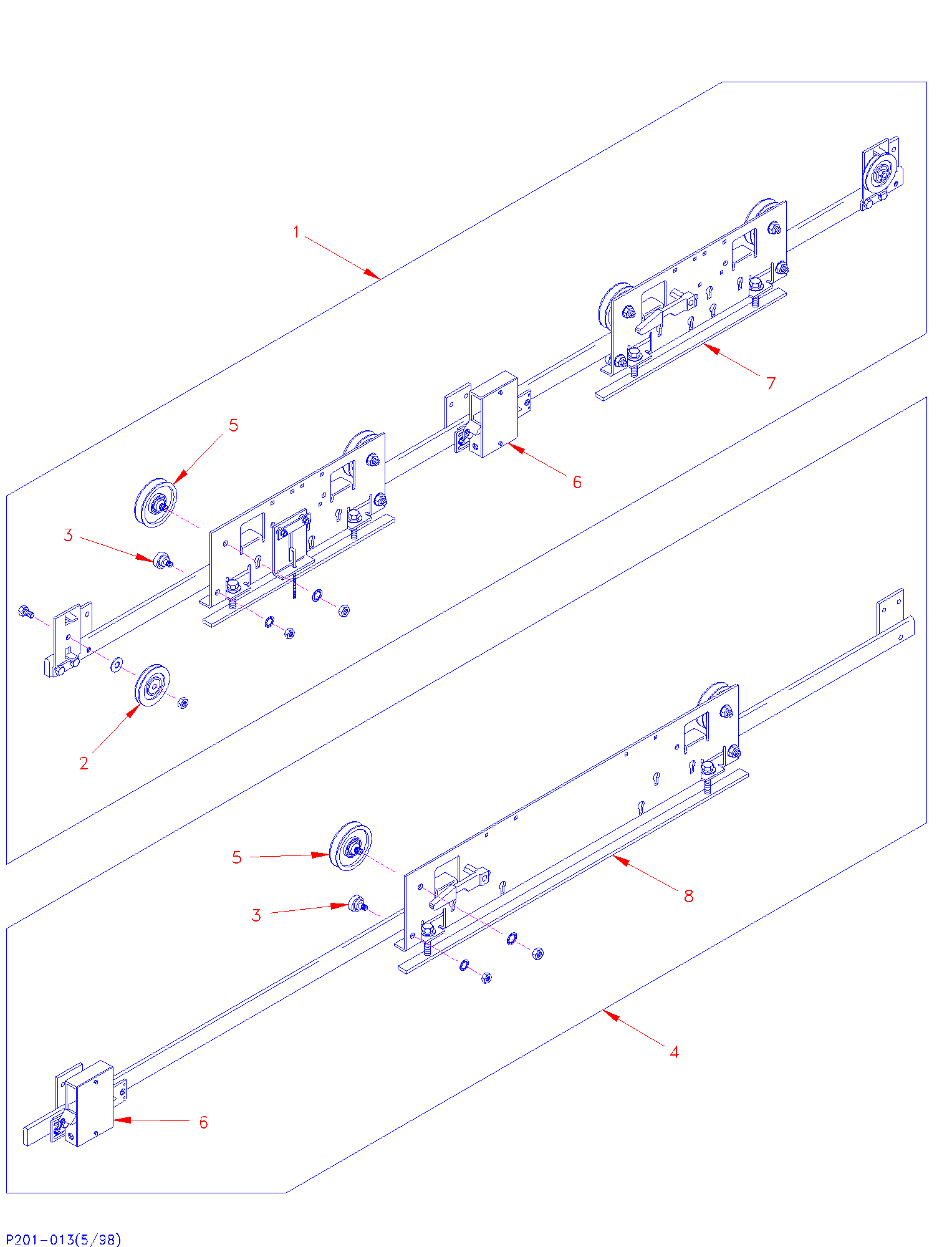

Hoistway door hangers - PE-3
Select a Part for Details:
0 - USP24925 - Obsolete, complete replacement will require a ReNova MOD - Door hanger, hoistway, PE-3 Center-opening
0 - USP24956 - Hardware, hanger mounting Car door, center-opening, single-slide, PE-3
0 - USP22327 - Door hanger, hoistway, PE-3
0 - USP31034 - SHEAVE,2.5,CABLE
0 - US90699 - Support, sheave 3/16, 3.56L
1 - USP24926 - Obsolete, complete replacement will require a ReNova MOD - Door hanger, car, PE-3 Center-opening, 42 inch width; RH
0 - USP22329 - Door hanger, hoistway, PE-3
3 - USP22236 - ROLLER,UPTHRUST,1.575D
4 - USP24921001 - Door hanger, hoistway, PE-3
0 - USP24921002 - Door hanger, hoistway, PE-3
0 - USP24922001 - Door hanger, hoistway, PE-3
0 - USP24922002 - Door hanger, hoistway, PE-3
5 - USP22237 - SHEAVE,3.25 RUNNING DIA.,POLW/ECC STUD
0 - USP24992CA1 - ***USE USP24992001*** Interlock assembly CANADIAN. RH, used with 1-3/4 in. sill applications - (NOT LISTED MKO2)
0 - USP24992CA2 - ***USE USP24992002*** Interlock assembly CANADIAN. LH, used with 1-3/4 in. sill applications.- (NOT LISTED MKO2)
0 - USP31366CA1 - Interlock hanger assembly CANADIAN. RH, used with PE-1 & PE-2
0 - USP31366CA2 - Interlock hanger assembly CANADIAN. LH, used with PE-1 & PE-2
6 - USP24992001 - INTERLOCK,HANGER,RH,PE3
0 - USP24992002 - INTERLOCK,HANGER,LH,PE3
0 - US90797001 - CABLE,HNGR,1SPD,36"C/O,PE3
0 - US90797002 - ***NO LONGER AVAILABLE - MAC*** CABLE,HNGR,1SPD,42C/O,PE3
0 - US90797003 - "CABLE,HNGR,1SPD,48""C/O,PE3"
8 - US90745 - Bar 1/4 x 7/8 x 34, PE-3, door
9 - US90744 - BAR,.25X.88X18.75,PE3,DOOR
