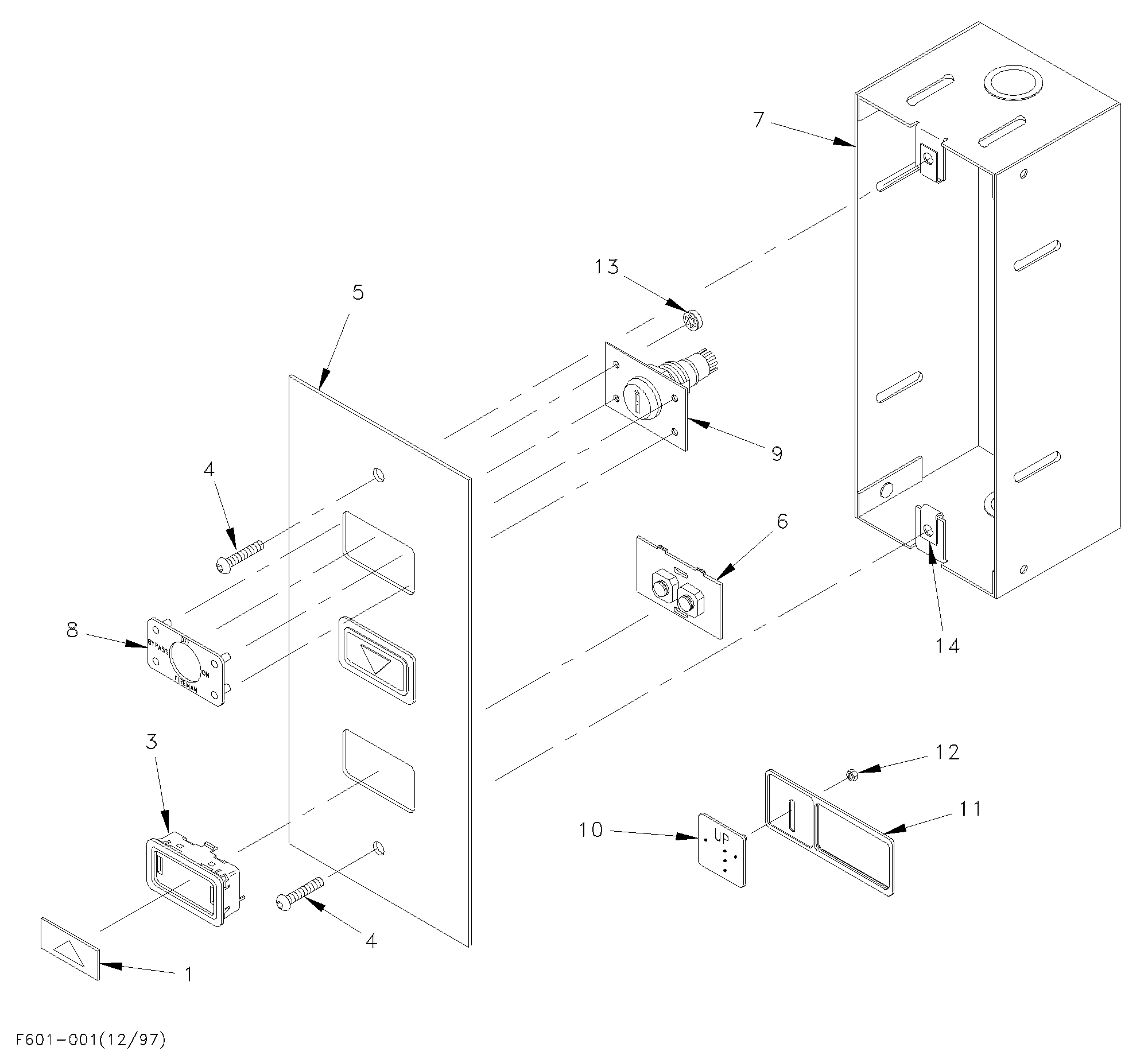

Series 220 Hall station assy
Select a Part for Details:
1 - US63655001 - PLATE,PRESSEL,PROJ,ARROW
0 - US63654001 - PLATE,PRESSEL,FLUSH,ARROW
3 - US63659001 - BODY,PB/PILOT,220 COMPLETE
4 - US63363002 - SCREW,SOC/BUT HD,10-24,1.0
0 - US63426002 - SCREW,SOC/BTN HD,10-24,1.0
6 - US63658001 - ***REPLACED BY KM659725G01*** PC BOARD,KONE PB/PILOT,24V,
11 - US63650001 - PLATE,TACTILE REC,220 PB
12 - US46662003 - NUT,KEP,ZINC PLTED,#6 (REPLACES US27917003)
13 - US63881003 - RING,RETAINER,EXT,.16 STUD
