Part Details for US48731003
Category:
Common Elevator Components
Group:
Washers
Subgroup:
Washers
- SAP Number
- US48731003
- Description

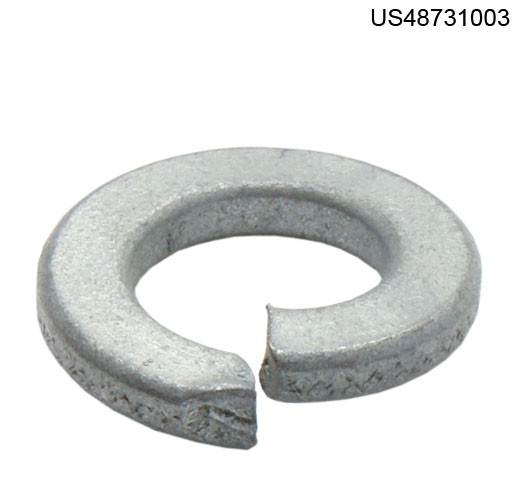

- WASHER,LOCK,SPRING, 3
- Illustration
- US48731003.jpg
- Assembly
- Tachometer mtg - 12.25 inch brake
- Step guards
- Speed sensor assembly - S-Controller
- Novatex boards - upper & return
- Motor, brake, & tachometer - used w/ES 24V & ES 24V-B controller
- Motor, brake, & encoder- used w/ S-controller
- Idler reversing station
- Handrail take-up device - truss end mount
- Handrail take-up device - stanchion mount
- Handrail speed sensor - glass balustrade - used w/ roller handrail return guide
- Handrail speed sensor - glass balustrade
- Handrail roller return guide assembly - wellway
- Handrail roller return guide assembly - drive & idler ends
- Handrail roller cluster; hold-down track
- Handrail roller cluster (used with roller handrail return guide)
- Handrail roller cluster & hold-down track (used w/ poly handrail return guide)
- Handrail return guide kits - P-34763-001 & P-34764-001 for conversion from poly return guides to roller return guides
- Handrail hold-down - center
- Handrail drive sheave support assy
- Handrail drive shaft support assembly
- Handrail drive chain take-up
- Drive motor & motor mount assy - auxiliary handrail drive
- Calrod heater mounting (upper end) - solid balustrade
- Calrod heater mounting (upper end) - glass balustrade
- Calrod heater mounting (lower end)
- Quantity
