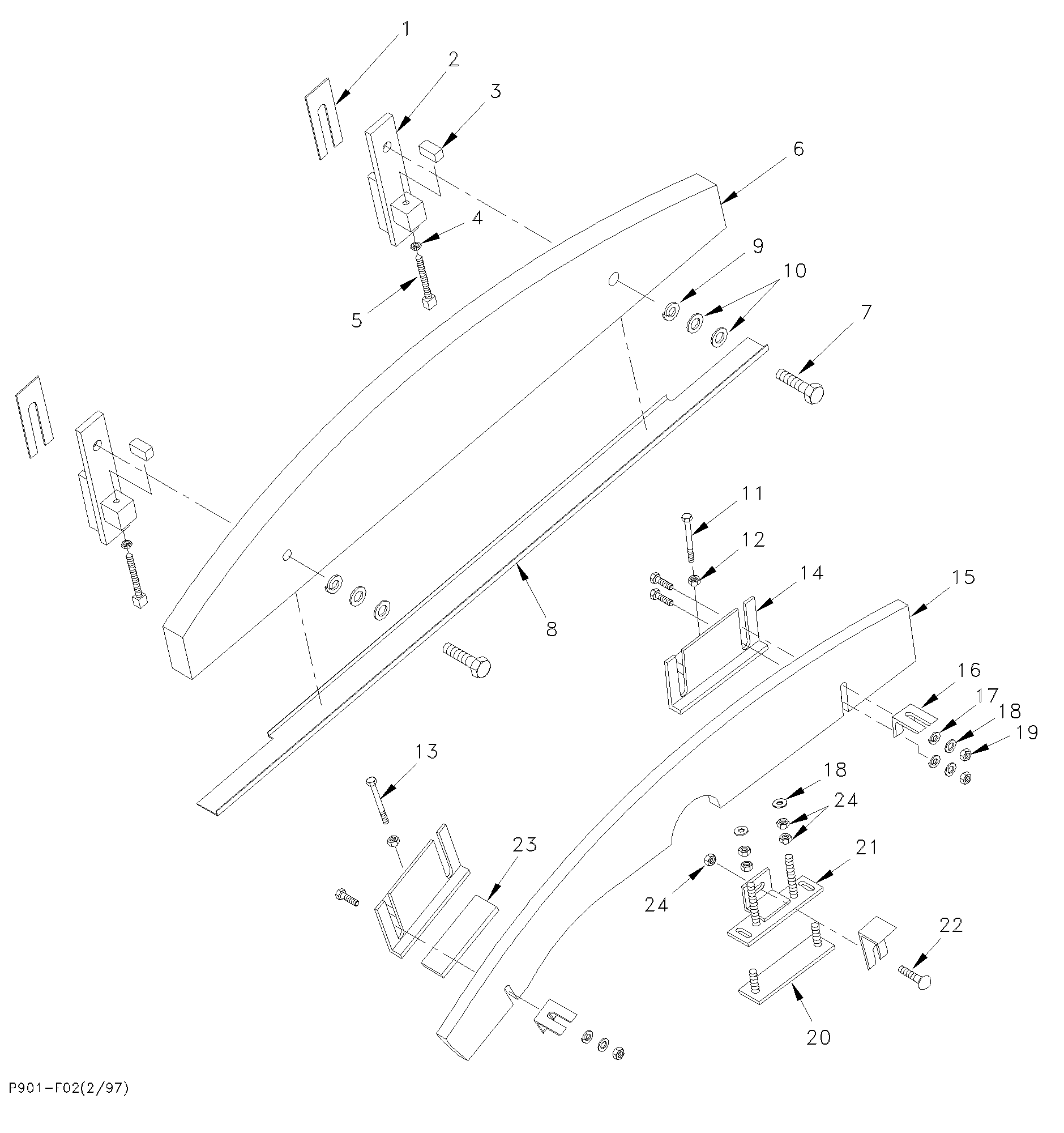

Novatex boards - upper & return
Select a Part for Details:
1 - US32923004 - SHIM,16GA HRS
3 - US32924 - BAR,3/8X1.5,L=3/4",DR
4 - US48873005 - NUT,HEX,G2,PLATED, 1/2-13
6 - US32926 - SUPPORT,CURVE,URS,STE
8 - US32962 - OIL SHIELD,CHAIN SUPP
9 - US48731005 - WASHER,LOCK,SPRING, 1/2
15 - US59259 - NOVATEX,UP STAT,STEP CHAIN
17 - US48731003 - WASHER,LOCK,SPRING, 3
18 - US49114011 - WASHER,FLAT,TYPE A,W,
19 - US48873003 - NUT,HEX,G2,PLATED, 3
22 - US49488003 - BOLT,CRG/G5,3/8-16,1-1/4" REPLACES US29116001
24 - US48839003 - NUT,HEX,JAM, UNC,3/8-
