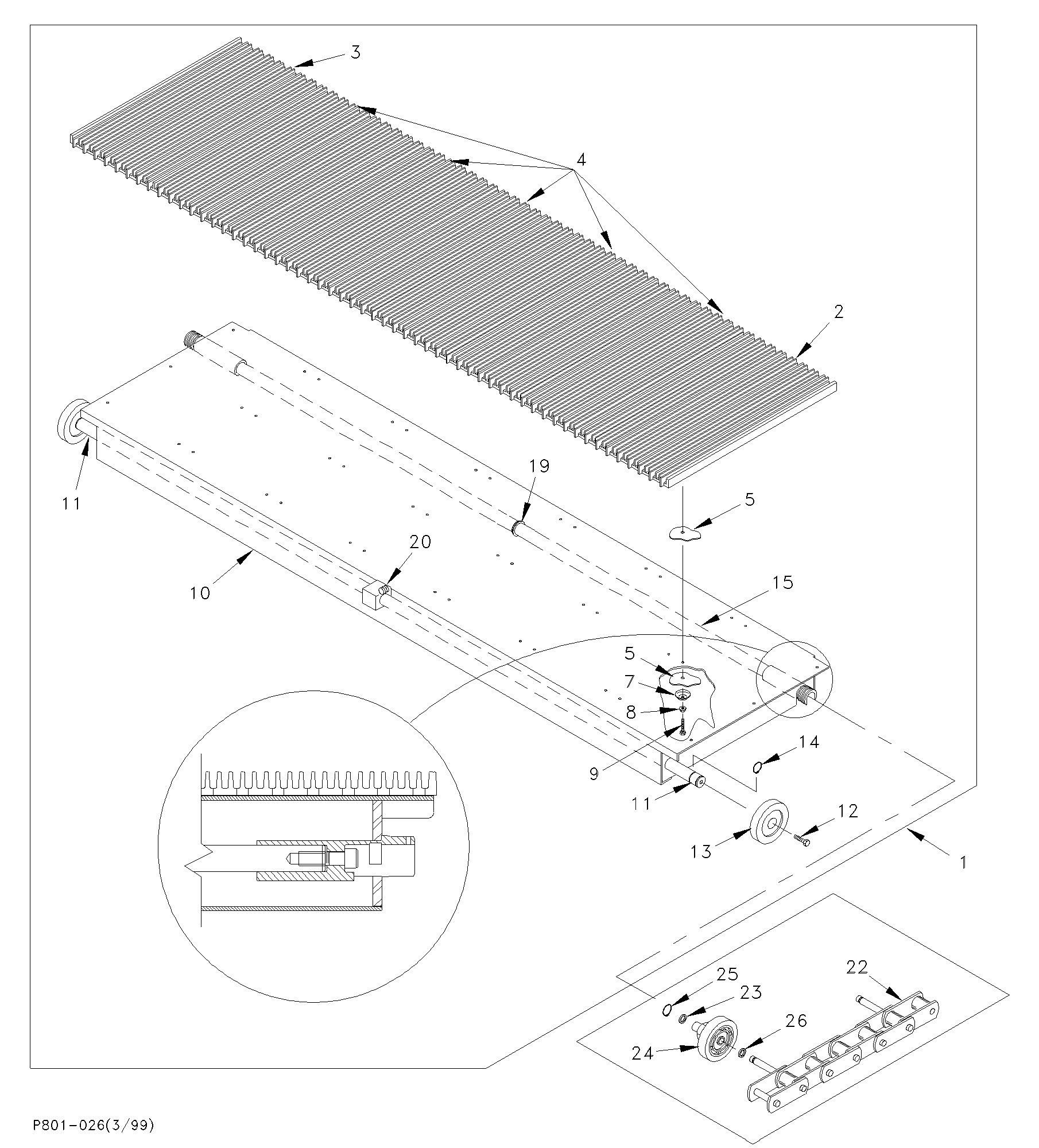

Pallets & chains - 7W
Select a Part for Details:
1 - USP32129001 - PALLET,FULL ASSY,7W When gone, replace by KM51056514G01
2 - US67764002 - TREAD,LONG,PNT&POLISH
3 - US67763002 - TREAD,LONG,PNT&POLISH
4 - US67762002 - TREAD,LONG,PNT&POLISH
7 - US67373 - WASHER,CUP,INT/EXT,3/16"
8 - US68228002 - NUT,HEX,FLG,LK,GRD5, #8-32 (REPLACES US48994002)
9 - US29255 - SCREW,HEX,#8-32TWIST-
12 - US61076005 - SCREW,HSC/SK,3/8-16,1"
13 - US69043001 - WHEEL,3" OD,22MM ID
14 - US16085052 - SNAPRING,EXT,.733D x
16 - US67436001 - SLEEVE,STEP,AXLE END
21 - US91476005 - ***REPLACED BY US91476001*** ADHESIVE,REMOVABLE,1ML
22 - US94418001 - ***REPLACED BY US94418101*** CHAIN,STEP,ROLL,4P,37000#
23 - US67854 - SPACER,.591ID,L=.135 REPLACES US94665001 & US36734
24 - USP32268 - ROLLER&SPINDLE,3"DX7/8",7W
25 - US16085053 - SNAPRING,EXT,.460DX.0
