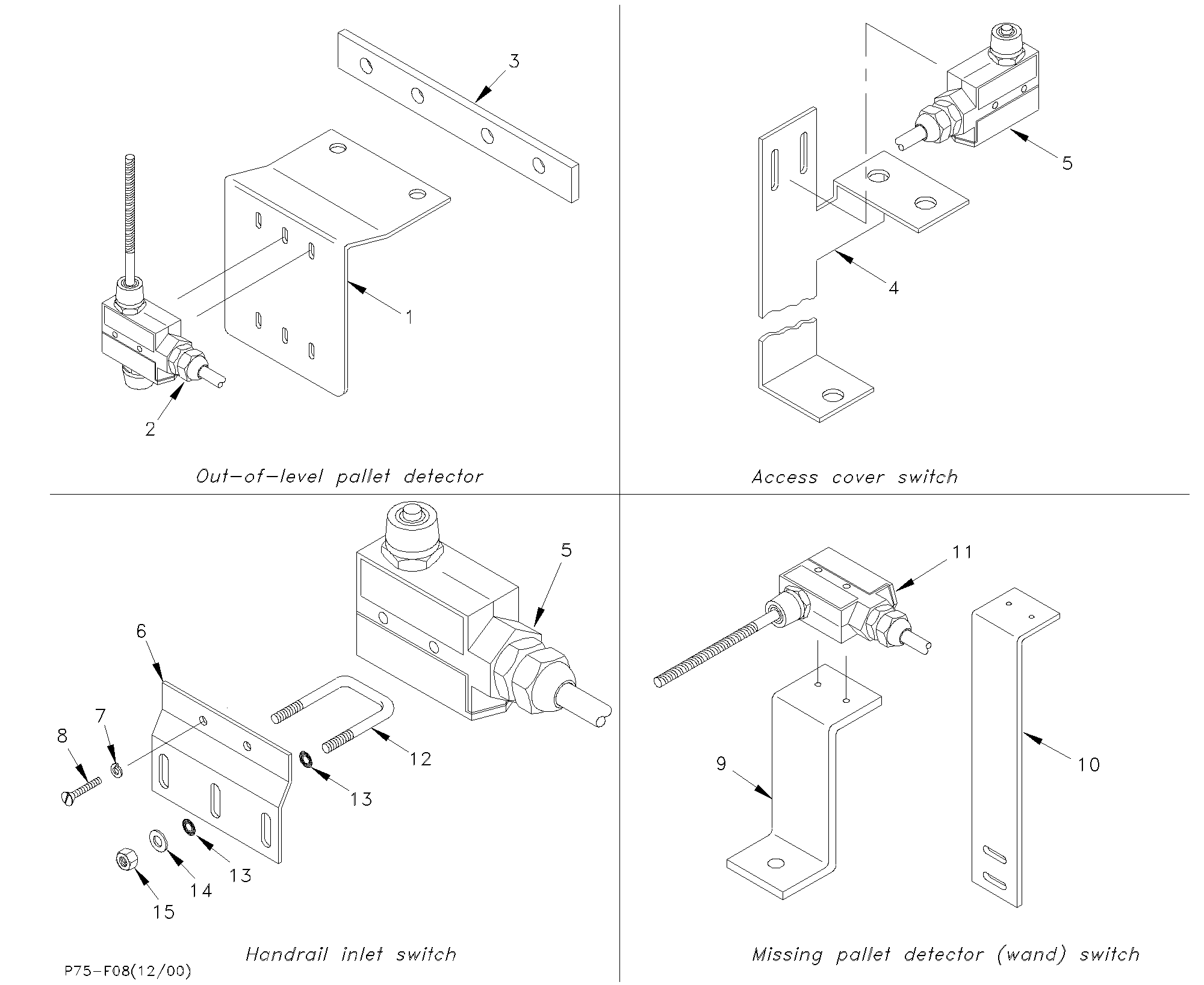

W-SERIES: Safety switches - out-of-level pallet detector, access cover switch, handrail inlet switch; missing pallet detector w/wand switch
Select a Part for Details:
1 - US68354 - BRACKET,LEVEL STEP,SW
2 - US94651001 - SWITCH,WAND,4.29",M/R
5 - US94650001 - SWITCH,PIN PLGR,NON M/R REPLACES US60031 & US59564
8 - US61691004 - SCREW,TRS/PH,#6-32,SS,3/8"
9 - US68019 - BRACKET,UP,COIL SPRING,SW
10 - US68020 - BRACKET,LOW COIL SPRING SW
11 - US94654002 - SWITCH,WAND,7.02",NON MR
13 - US16084023 - O-RING,1/4"OD,1/8"ID
14 - US49114004 - WASHER,FLAT,TYPE A,W,
15 - US46662003 - NUT,KEP,ZINC PLTED,#6 (REPLACES US27917003)
