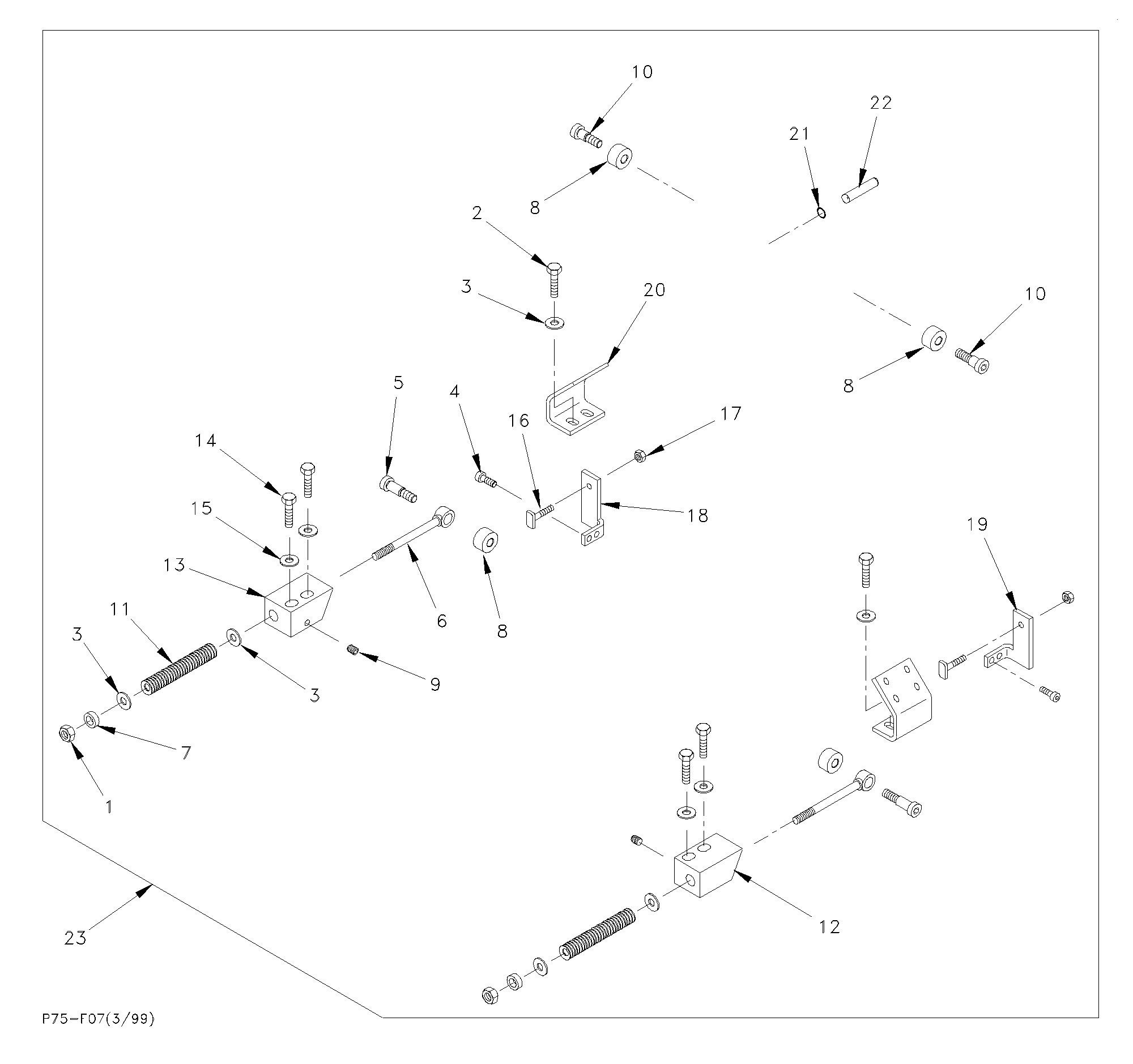

W-SERIES: Combplate impact device
Select a Part for Details:
3 - US49114010 - WASHER,FLAT,TYPE A,W,
4 - US68738004 - SCREW,HSC/SK,LOW,M6,L=16MM
5 - US68751006 - SCREW,HSC/SKSH,M10X1.5,40
6 - US69858002 - EYEBOLT,M8 THRDS,.48" EYE
7 - US69480001 - BUSHING,GUIDE WHL,SPACER
8 - US94376001 - BUSHING,ROLLER,COMB IMPACT
11 - US69796003 - SPRING,BELLEVILLE,8.2MM ID
15 - US49114011 - WASHER,FLAT,TYPE A,W,
16 - US34301 - BOLT,"T",1/4-20, L=1
21 - US16084030 - O-RING,7/16"OD,5/16"I
