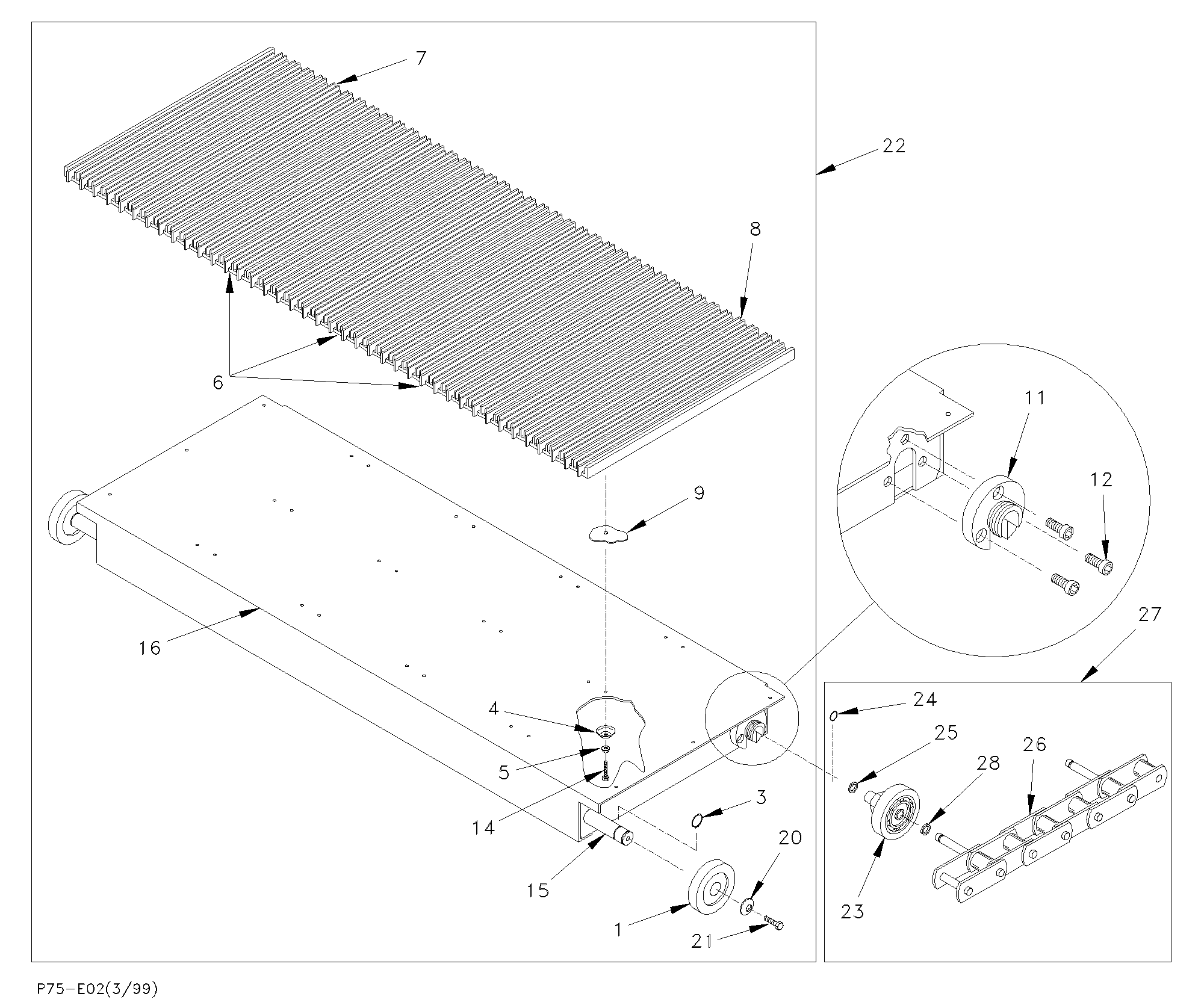

Pallets & chains - 3W, 4W, & 5W (w/ tapped trailing wheel shaft)
Select a Part for Details:
1 - US69043001 - WHEEL,3" OD,22MM ID
3 - US16085011 - SNAPRING,EXT,.733Dx.0
4 - US67373 - WASHER,CUP,INT/EXT,3/16"
5 - US68228002 - NUT,HEX,FLG,LK,GRD5, #8-32 (REPLACES US48994002)
6 - US67762002 - TREAD,LONG,PNT&POLISH
7 - US67763002 - TREAD,LONG,PNT&POLISH
8 - US67764002 - TREAD,LONG,PNT&POLISH
11 - US60750 - FLANGE,STEP,1.125-12 UNF
12 - US68622002 - SCREW,HSC/SK,5/16-18,3/4"
14 - US29255 - SCREW,HEX,#8-32TWIST-
19 - US91476005 - ***REPLACED BY US91476001*** ADHESIVE,REMOVABLE,1ML
21 - US49387004 - SCREW,HHC/G2,1/4-20,
22 - USP34062001 - PALLET,TRAIL WHEEL SHFT,5W
23 - USP27166 - ROLLER&FLANGE ASSY,3",WALK
24 - US16085053 - SNAPRING,EXT,.460DX.0
25 - US67854 - SPACER,.591ID,L=.135 REPLACES US94665001 & US36734
26 - US67883 - CHAIN,STEP,ROLL,4P,41000# (REPLACES US35672)
26 - US67884 - CHAIN,STEP,ROLL,24P,41000# (REPLACES US35671)
