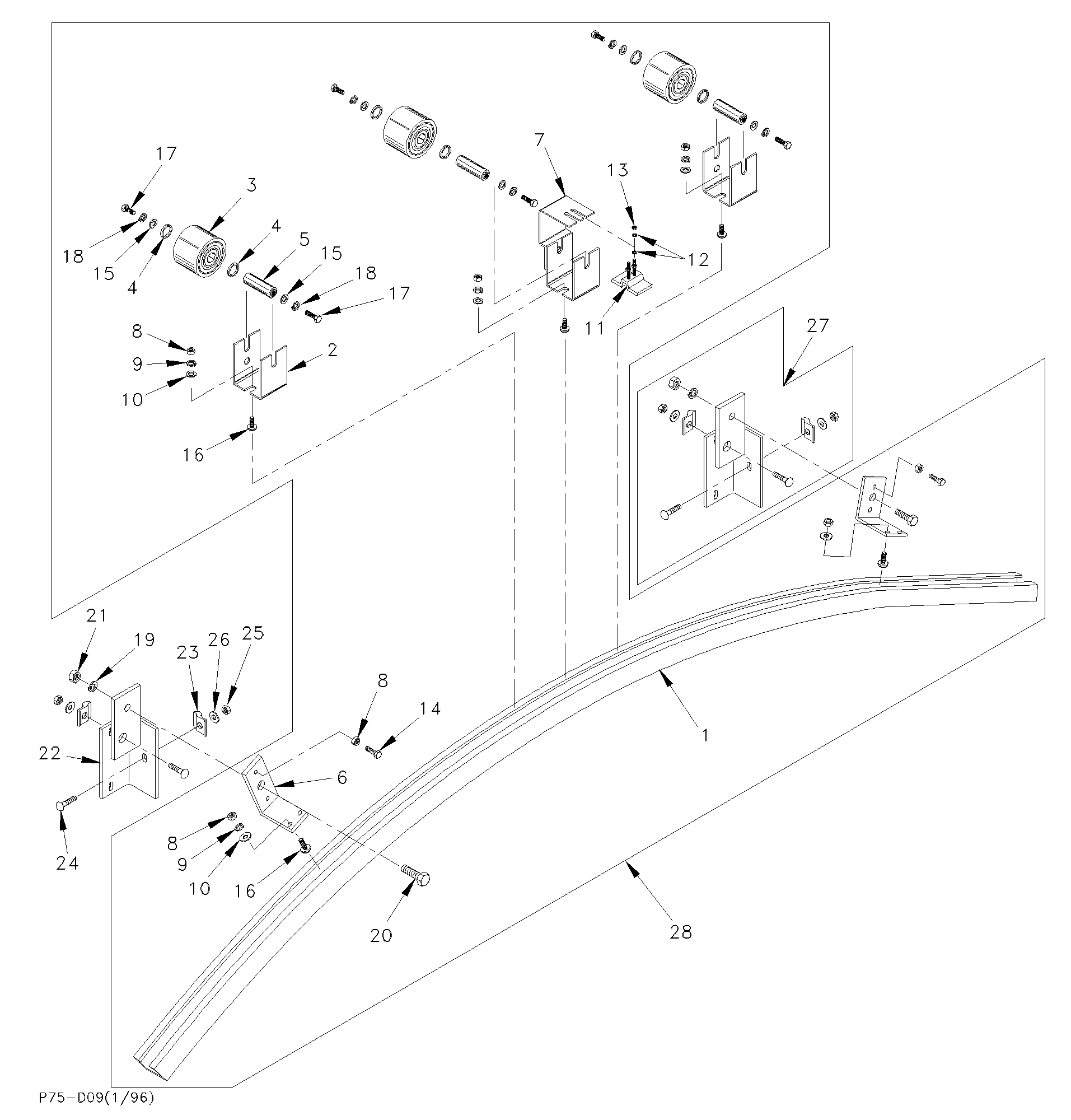

Handrail take-up device - stanchion mount
Select a Part for Details:
3 - USP26936 - ROLLER,IDLER,HANDRAIL, WITHOUT PINS
4 - US44486 - SPACER,HANDRAIL WHEEL
5 - US44485 - SHAFT,ROLR CLSTR,CRYS
8 - US48873003 - NUT,HEX,G2,PLATED, 3
9 - US48731003 - WASHER,LOCK,SPRING, 3
11 - US60440 - GUIDE,NEWEL,MOD.4000,5000
13 - US48873001 - NUT,HEX,G2,PLATED, 1
15 - US49114010 - WASHER,FLAT,TYPE A,W,
17 - US49389003 - SCREW,HHC/G2,5/16-18,
18 - US48731002 - WASHER,LOCK,SPRING, 5
23 - US540800A - CLIP,6.25&8#GR,FORGED STL
24 - US49488003 - BOLT,CRG/G5,3/8-16,1-1/4" REPLACES US29116001
26 - US49114011 - WASHER,FLAT,TYPE A,W,
