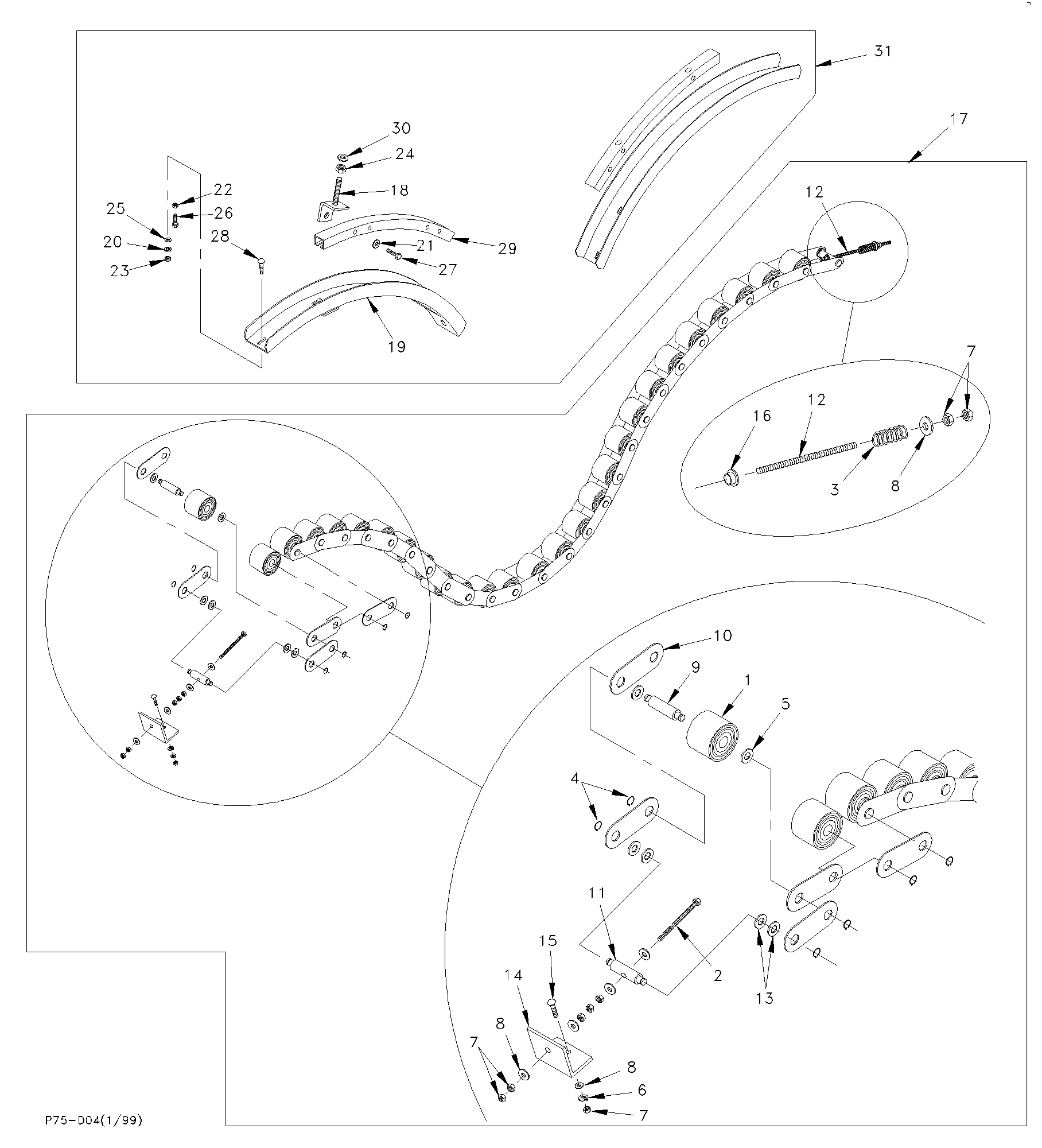

Handrail roller cluster & hold-down track (used w/ poly handrail return guide)
Select a Part for Details:
1 - USP26936 - ROLLER,IDLER,HANDRAIL, WITHOUT PINS
3 - US2881049 - SPRING,COMP,750LBS,2-
4 - US16085053 - SNAPRING,EXT,.460DX.0
5 - US44486 - SPACER,HANDRAIL WHEEL
10 - US59928 - CHAIN,LINK,HANDRAIL ROLLER
14 - US67134 - ANGLE,RLR CLUSTER,AUX DRV
17 - USP27057 - ROLLER CLUSTER,PW & ESC
20 - US48731003 - WASHER,LOCK,SPRING, 3
21 - US48731005 - WASHER,LOCK,SPRING, 1/2
22 - US48839003 - NUT,HEX,JAM, UNC,3/8-
23 - US48873003 - NUT,HEX,G2,PLATED, 3
25 - US49114011 - WASHER,FLAT,TYPE A,W,
Click to Enlarge
×
