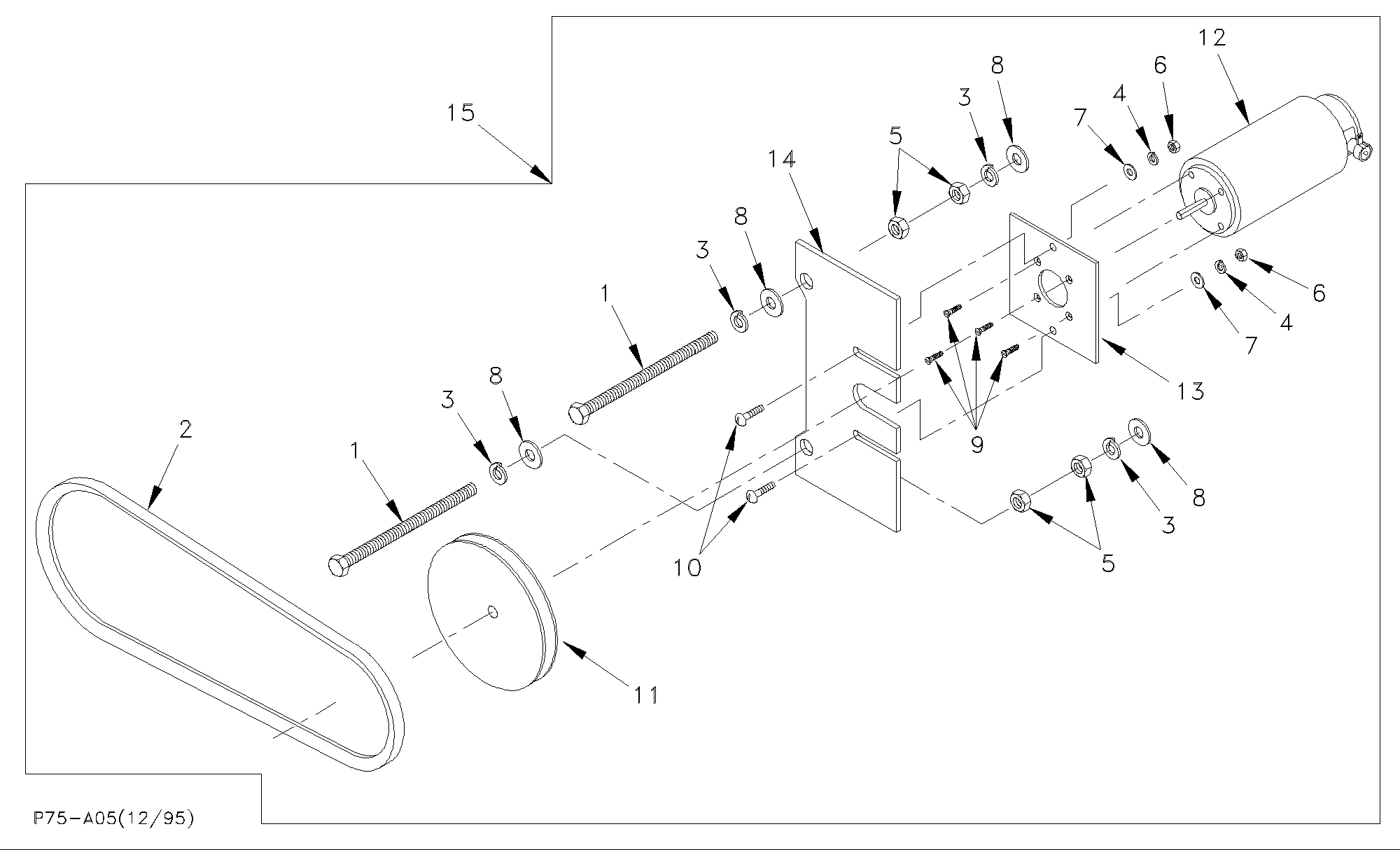

Tachometer mtg - 12.25 inch brake
Select a Part for Details:
2 - US19501108 - BELT,3L 310 FRAC HP V
3 - US48731003 - WASHER,LOCK,SPRING, 3
5 - US48873003 - NUT,HEX,G2,PLATED, 3
7 - US49114006 - WASHER,FLAT,TYPE A,W,
8 - US49114011 - WASHER,FLAT,TYPE A,W,
9 - US49280005 - SCREW,FLT/SL,#6-32,1/2"
11 - US60823 - SHEAVE,4" TACHOMETER
12 - US65981 - TACHOMETER,PM,24VDC CONT. 48V TAC. 1500RPM, OLDER STYLE UNITS. BRUSH FOR THIS TAC IS US515535
15 - USP24897 - ***NO LONGER AVAILABLE*** TACHOMETER,MRG,ESC
Click to Enlarge
×
