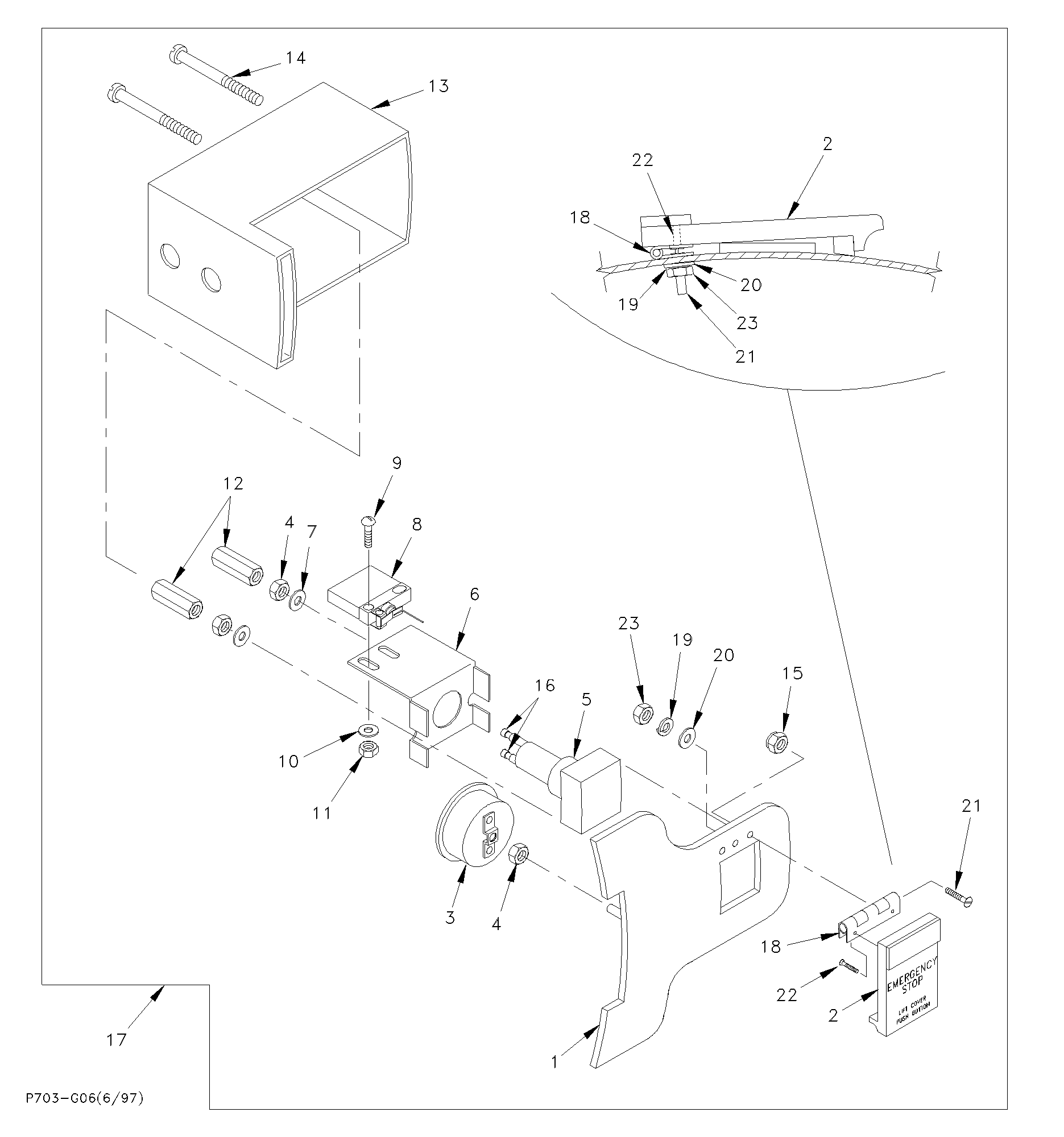

E-SERIES 5000 - Emergency stop switch & alarm switch - E50001-E50426
Select a Part for Details:
2 - US60185 - ***REPLACED BY USP23893*** COVER-LIFT,EMERGENCY STOP
3 - US60913 - HORN,VIBRATING FOR ALARM - NO LONGER AVAIALBLE - For E-stop assemblies that originally used US60913 the entire E-stop assy will have to be replaced.
4 - US48380008 - NUT,HEX,MACH,G2,PLT,
5 - US68167 - PUSHBUTTON,MOM,STOP,ESC
6 - US68166 - BRACKET,SQUARE,STOPBUTTON
8 - USP23983 - SWITCH,ALARM,ASSY,W-PROOF (REPLACES US59098)
10 - US49114004 - WASHER,FLAT,TYPE A,W,
11 - US48380007 - NUT,HEX,MACH,G2,PLT,
15 - US50287009 - NUT,HEX,LOCK,W/NYL,#8-32
17 - USP32810001 - BOX,E-STOP,ASSY E5000 - ESTOP ASSY (BUZZER & BUTTON NO LONGER AVAILABLE) ------- RPB KM51943679V000
0 - USP32552001 - PLATE,BACKING,EM STOP BOX
Click to Enlarge
×
