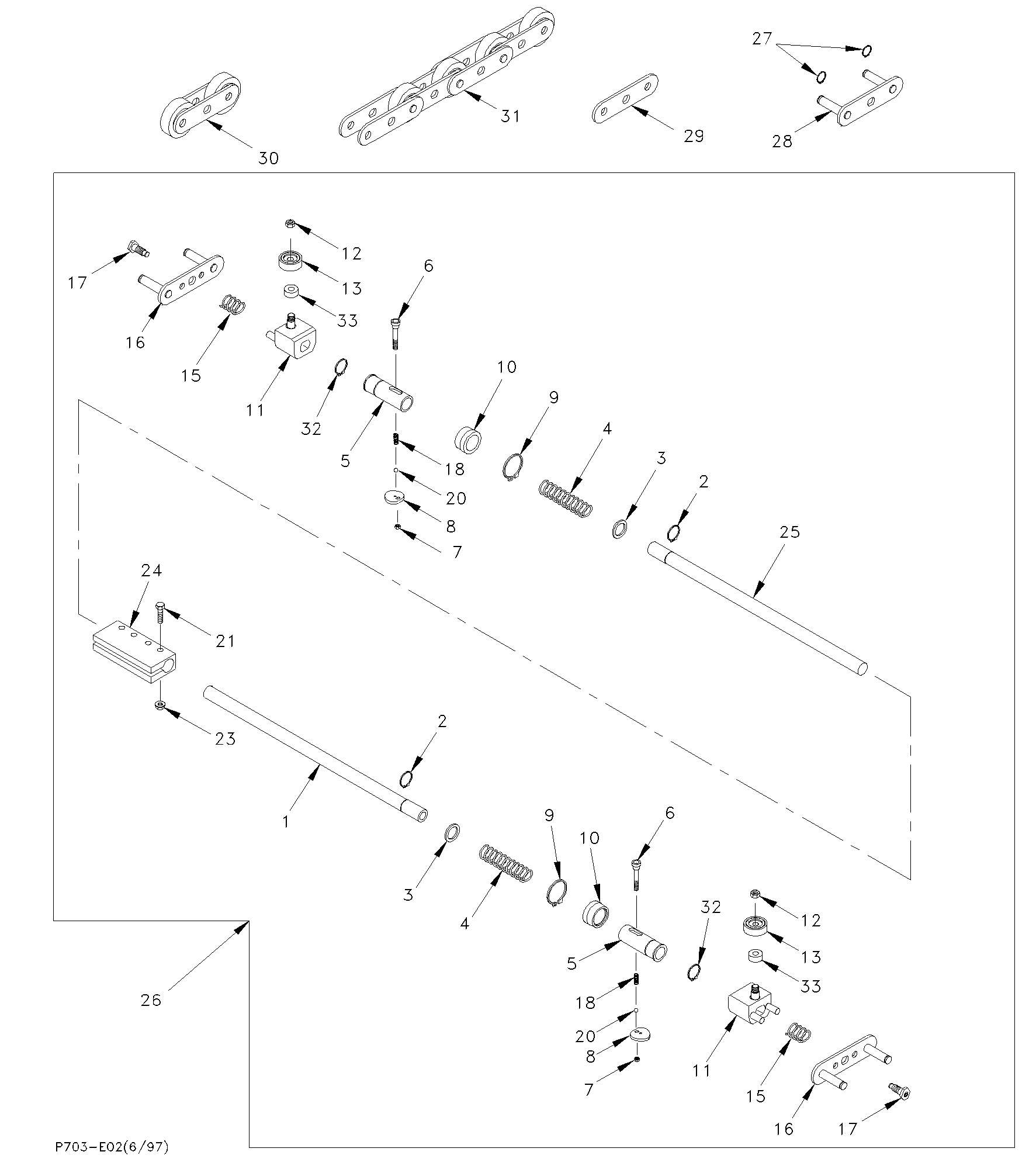

E-SERIES 5000 Step chains /axles - w/release mechanism
Select a Part for Details:
1 - US69046003 - ***OBSOLETE – NO LONGER AVAILABLE*** AXLE,STEP,5E,ESC,RIGHT
1 - US69358001 - AXLE,STEP,3E,ESC,RIGHT
1 - US69359001 - ***OBSOLETE – NO LONGER AVAILABLE*** AXLE,STEP,4E,ESC,RIGHT
1 - US69046006 - AXLE,STEP,5E,ESC,R&L
3 - US69412001 - WASHER,STEP AXLE,REL SPRG
4 - US69076001 - SPRING,COIL,.9"ID,4.25" L
5 - US69272001 - ***REPLACED BY US69272002*** SLEEVE,RELEASE,STEP AXLE
6 - US69383001 - PIN,CAM,STEP RELEASE
7 - US68736003 - NUT,LOCK,HEX,METRIC,M6X1.0
8 - US69273001 - CAM,STEP RELEASE
9 - US16085063 - SNAPRING,EXT,1.041D X
10 - US69033001 - BUSHING,INNER,STEP RELEASE
11 - US69207002 - ***REPLACED BY US69207003*** BUSHING,STEP,GUIDE,
11 - US69207003 - BUSHING,STEP GUIDE,OUTER,REPLACES US42430
12 - US68736005 - NUT,LOCK,HEX,METRC.M10X1.5
12 - US68785005 - NUT,HEX,M10X1.5,DRI-LOC
12 - US69214001 - SCREW,GUIDE WHL,STEP AXLE, E5000 - NO LONGER AVAILABLE, USED WITH BUSHING US69207001. BOTH RPB US69207003 - BUSHING W/STUD
13 - US69006002 - WHEEL,1.5"OD,STEP GUIDE
15 - US69433001 - SPRING,COIL,STEP,OUTER
16 - US69493003 - ***REPLACED BY US69493004*** LINK,STEP CHAIN,GUIDE
17 - US69119001 - SCREW,CHAIN PIN,STEP AXLE
18 - US69984001 - SPRING,.125 DIA,.38
20 - US69985001 - BALL,.125,DETENT
21 - US68719008 - SCREW,HHC,M8,GR 8.8,L=40MM
24 - US69965001 - CLAMP,SHAFT,SPLICE
25 - US69046004 - ***OBSOLETE – NO LONGER AVAILABLE*** AXLE,STEP,5E,ESC,LEFT
25 - US69358002 - AXLE,STEP,3E,ESC,LEFT
25 - US69359002 - ***OBSOLETE – NO LONGER AVAILABLE*** AXLE,STEP,4E,ESC,LEFT
26 - USP34298010 - ***REPLACED BY USP34297010*** AXLE,ASSY,STEP,5E,E-5000
27 - US16085028 - SNAPRING,EXT,.530Dx.0 REPLACES US16085059
28 - US69493002 - LINK,STEP CHAIN,GUIDE
29 - US69494001 - ***REPLACED BY US69494003*** LINK,STEP CHAIN,SIDE PLT
30 - US69492002 - ***REPLACED BY US69492003*** CHAIN,S.P.,3900#
31 - USP27975001 - CHAIN,ROLLER,SEG W/LINK
32 - US16085065 - SNAPRING,EXT,.810D X
33 - US69480001 - BUSHING,GUIDE WHL,SPACER
Click to Enlarge
×
