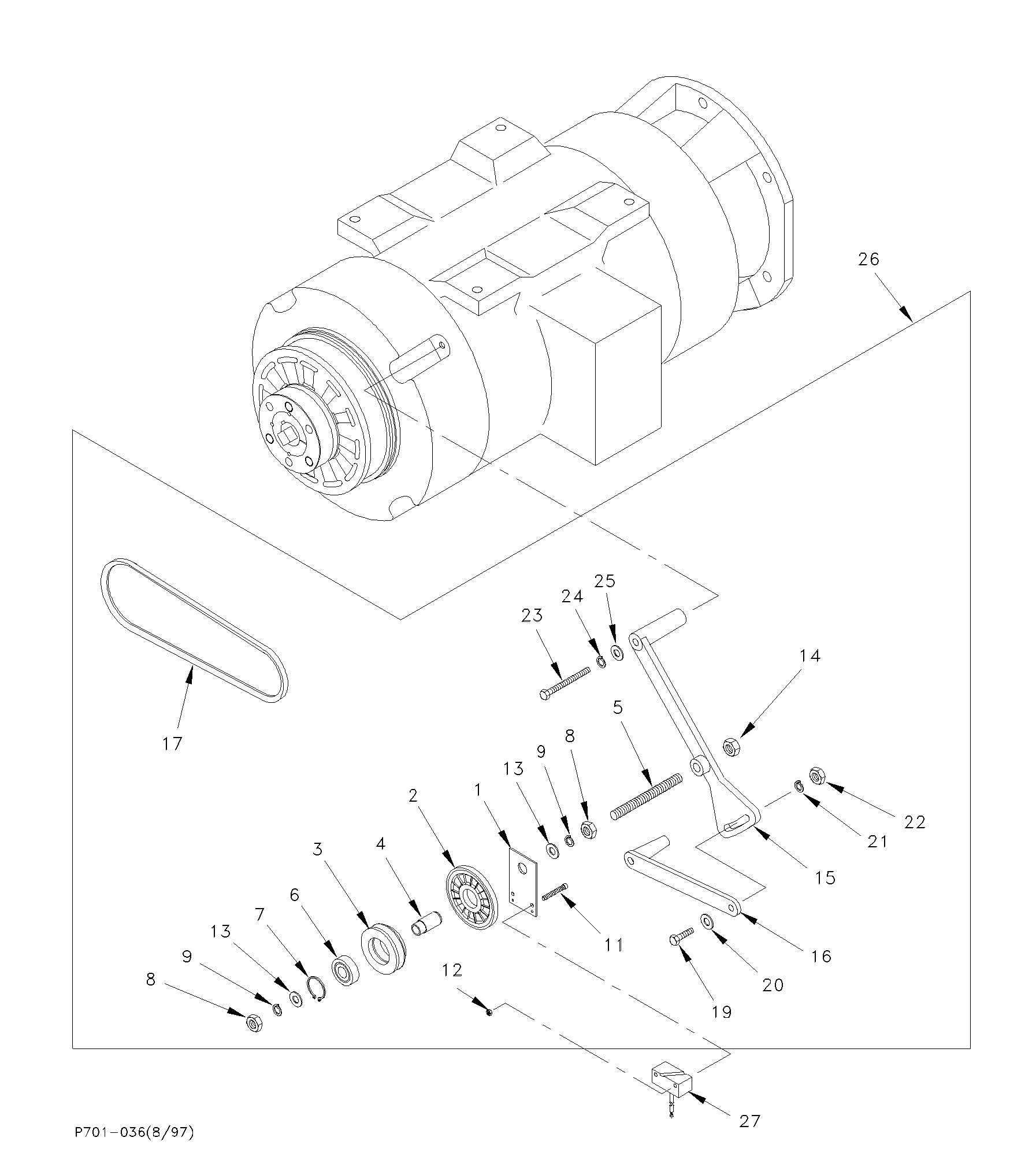

Speed sensor assembly - S-Controller
Select a Part for Details:
1 - US48873003 - NUT,HEX,G2,PLATED, 3
2 - US48731003 - WASHER,LOCK,SPRING, 3
6 - US19501108 - BELT,3L 310 FRAC HP V
7 - USP34701001 - ENCODER,MTG,ESC,90/120 FPM. BRACKET AND WHEEL ONLY. ENCODER IS US96210001
7 - USP34701002 - ENCODER,MTG,ESC,100/133FPM. BRACKET AND WHEEL ONLY. US96210001 IS THE ENCODER
9 - US101176 - BEARING,BALL,SGL,1.57 ***Replaces US503596***
12 - US49395009 - SCREW,HHC/G2,1/2-13, 2-1/2
14 - US48873005 - NUT,HEX,G2,PLATED, 1/2-13
15 - US94614002 - RING,ENCODER MAGNET MOUNTING
