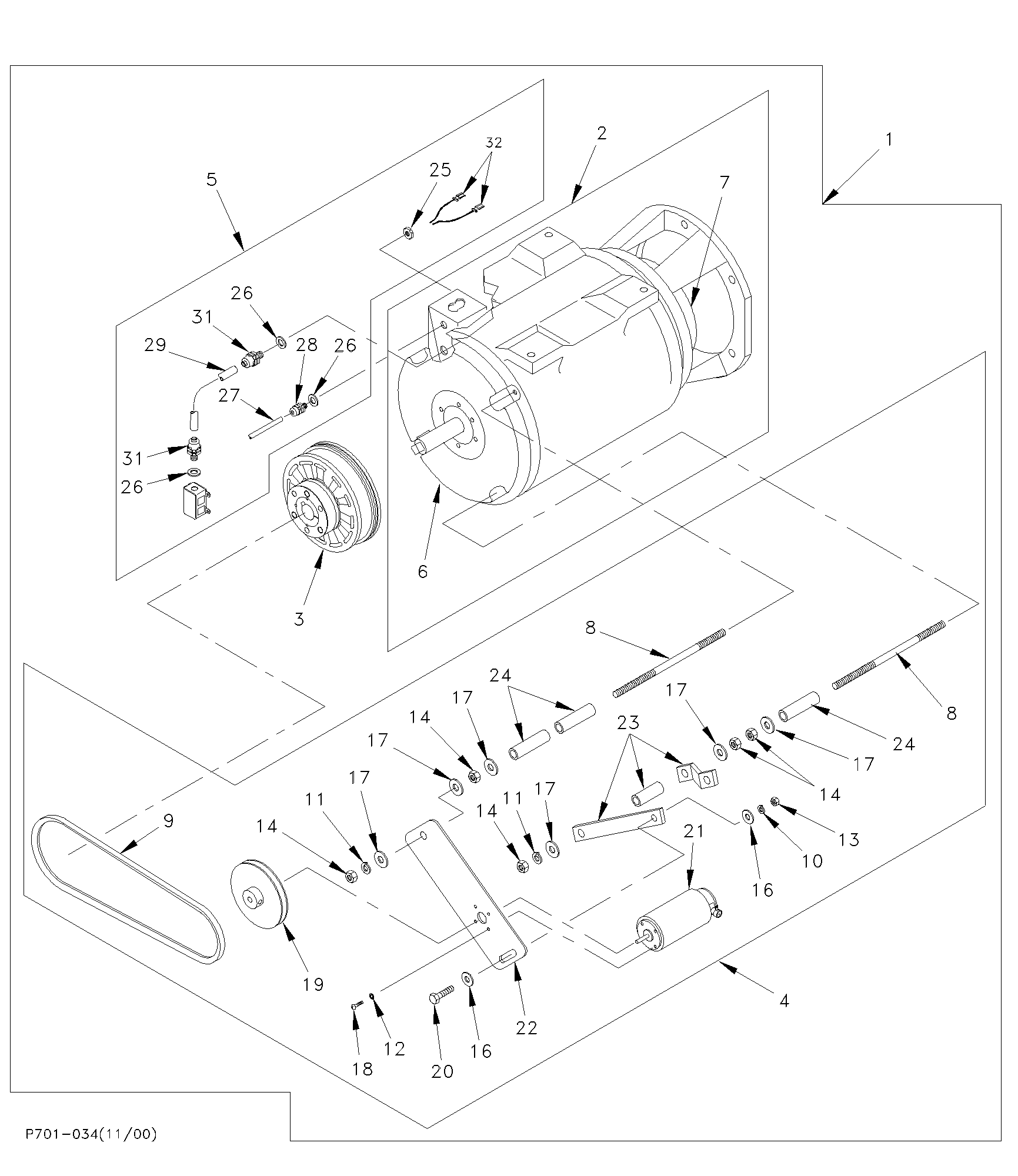

Motor, brake, & tachometer - used w/ES 24V & ES 24V-B controller
Select a Part for Details:
3 - USP32743001 - ***REPLACED BY KIT, KM51039078R01*** BRAKE,8.25",MAGNET,90V,
4 - USP24696 - TACHOMETER,ROD,PLATE,ASSY (REPLACES US65088)
9 - US19501108 - BELT,3L 310 FRAC HP V
10 - US48731002 - WASHER,LOCK,SPRING, 5
11 - US48731003 - WASHER,LOCK,SPRING, 3
12 - US48476002 - WASHER,LOCK,INT TOOTH
13 - US48873002 - NUT,HEX,G2,PLATED, 5/
14 - US48873003 - NUT,HEX,G2,PLATED, 3
16 - US49114010 - WASHER,FLAT,TYPE A,W,
17 - US49114011 - WASHER,FLAT,TYPE A,W,
18 - US49360006 - SCREW,RND/SL,#6-32,1/
19 - US60823 - SHEAVE,4" TACHOMETER
21 - US65981 - TACHOMETER,PM,24VDC CONT. 48V TAC. 1500RPM, OLDER STYLE UNITS. BRUSH FOR THIS TAC IS US515535
28 - US67064001 - CONNECTOR,.170-.47",1/2NPT
32 - US45812007 - TERM,F,TAB,22-18,.020
Click to Enlarge
×
