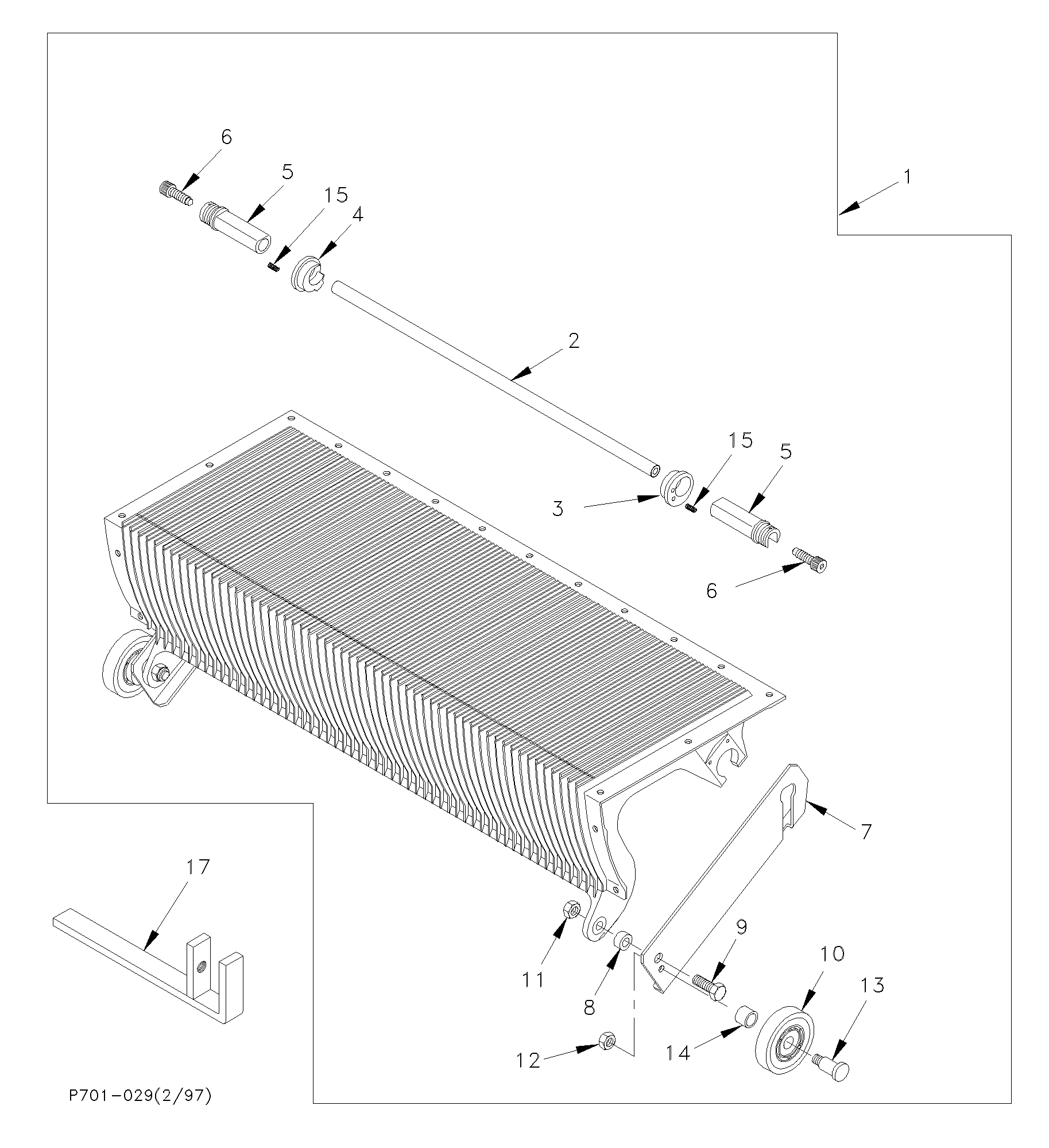

Steps - cast
Select a Part for Details:
2 - US67821001 - SHAFT,STEP,THRU-AXLE,5E
2 - US67821002 - SHAFT,STEP,THRU-AXLE,4E
2 - US67821003 - SHAFT,STEP,THRU-AXLE,3E
3 - US69817001 - PLUG,STEP ADAPTER,W/LUG,RH
4 - US69817002 - PLUG,STEP ADAPTER,W/LUG,LH
5 - US67436001 - SLEEVE,STEP,AXLE END
6 - US61076005 - SCREW,HSC/SK,3/8-16,1"
7 - US69820001 - PLATE,STEP ADAPTER,RH
7 - US69820002 - PLATE,STEP ADAPTER,LH
8 - US69818001 - SPACER,STEP ADAPTER
10 - US69043001 - WHEEL,3" OD,22MM ID
11 - US50287013 - NUT,HEX,LOCK,W/NYL,9/16-12
15 - US68459001 - SPRING,STEP,.25 OD,.75LG
0 - US91476005 - ***REPLACED BY US91476001*** ADHESIVE,REMOVABLE,1ML
17 - US45018 - LOCK,STEP BAND,CALIFO
