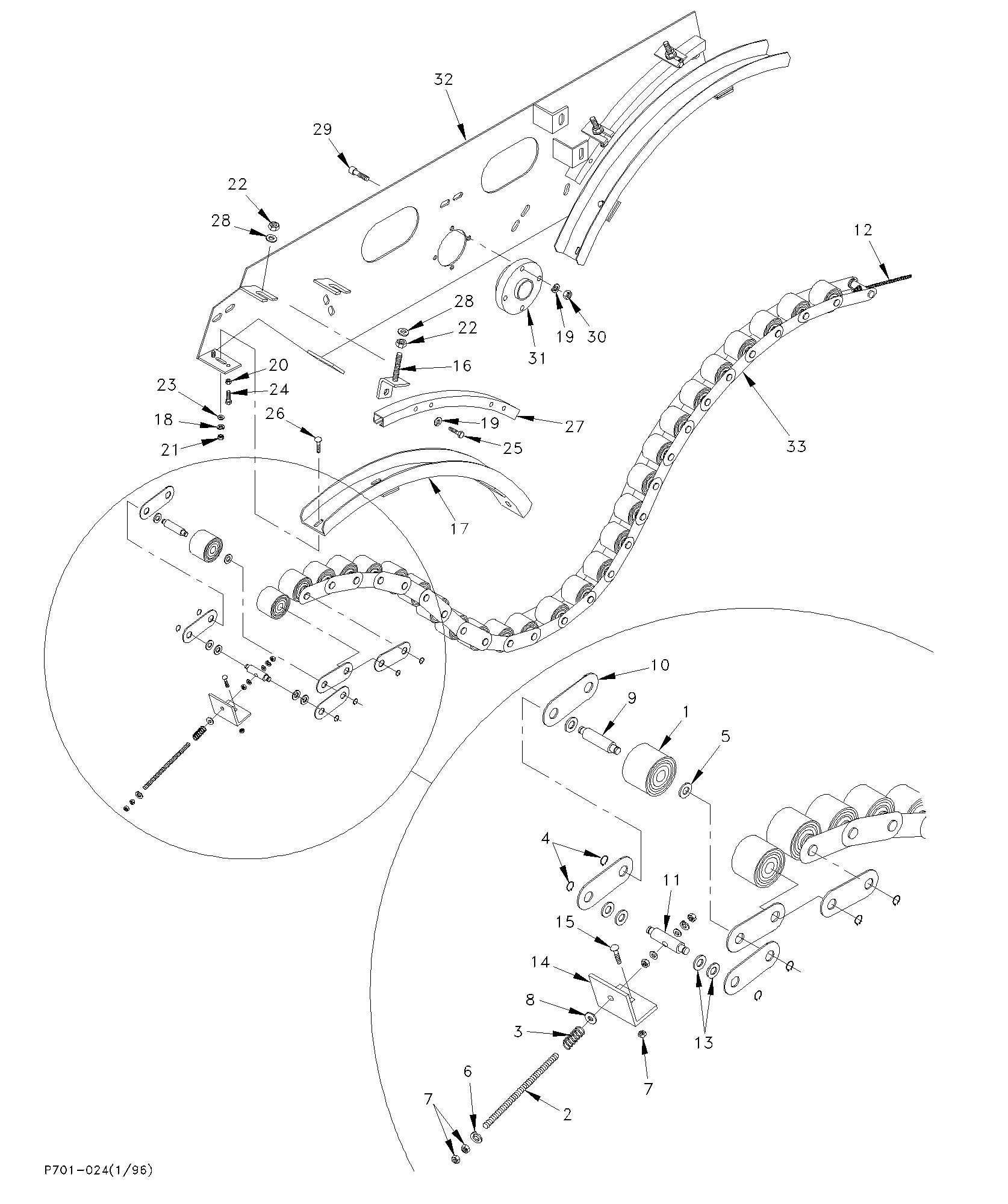

Handrail roller cluster; hold-down track
Select a Part for Details:
1 - USP26936 - ROLLER,IDLER,HANDRAIL, WITHOUT PINS
3 - US2881049 - SPRING,COMP,750LBS,2-
4 - US16085053 - SNAPRING,EXT,.460DX.0
5 - US44486 - SPACER,HANDRAIL WHEEL
10 - US59928 - CHAIN,LINK,HANDRAIL ROLLER
14 - US67134 - ANGLE,RLR CLUSTER,AUX DRV
18 - US48731003 - WASHER,LOCK,SPRING, 3
19 - US48731005 - WASHER,LOCK,SPRING, 1/2
20 - US48839003 - NUT,HEX,JAM, UNC,3/8-
21 - US48873003 - NUT,HEX,G2,PLATED, 3
23 - US49114011 - WASHER,FLAT,TYPE A,W,
31 - US67819 - BEARING,FLANG MNT,4.5 HOLE
32 - USP32581001 - PLATE,HOLD DOWN,CRY ESC,LH
33 - USP27057 - ROLLER CLUSTER,PW & ESC
