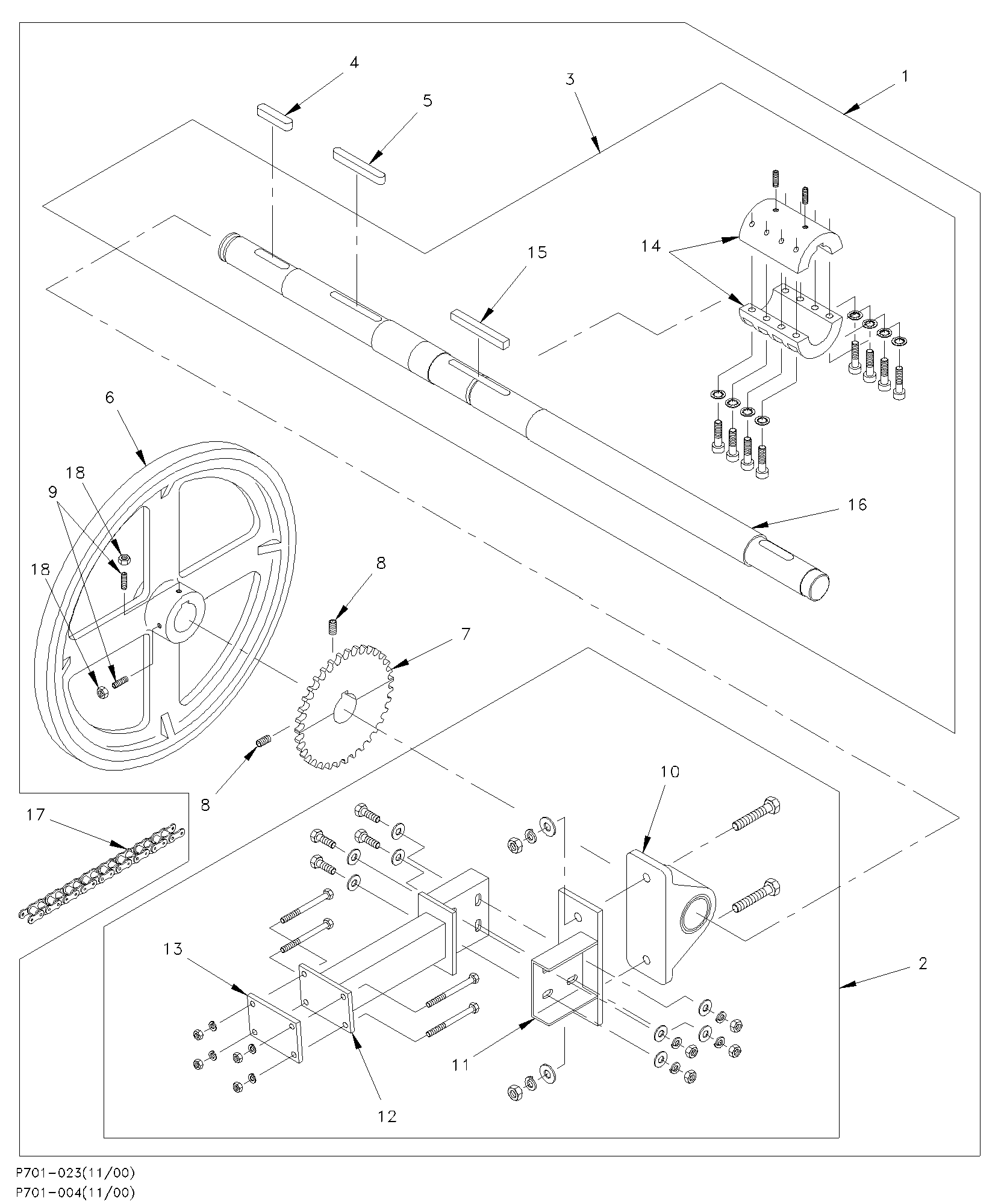

Handrail drive wheel & support assy
Select a Part for Details:
3 - USP27272001 - HR SHAFT & COUPLING,3E (REPLACES US60786001)
3 - USP27272002 - HR SHAFT & COUPLING,4E
3 - USP27272003 - HR SHAFT & COUPLING,5E Replaces US60786003
4 - US59043 - KEY,HANDRAIL DRIVE SHEAVE
5 - US60953 - KEY,HR DRIVE SPROCKET
6 - US67107002 - WHEEL,HR-DRIVE,MACH,"V"
6 - US67107003 - WHEEL,HR-DRIVE,MACH,FLAT, 6 SPOKE
7 - USP32973001 - SPROCKET,SPLIT,D80-29T,ESC REPLACES US60917
7 - US67095 - SPROCKET,HR DR,SINGLE #80 (SPLIT SPROCKET)
10 - US59428 - BEARING SUPPORT,HANDRAIL
15 - US60546 - KEY,5/8SQ,HR GEAR SHAFT,DD
17 - US67097 - CHAIN, HR DR,V,#80,173",CL&OL, ONE BOX CONTAINS THE FOLLOWING: #80 SINGLE STRAND 1" PITCH 171 PITCH + CONNECTING LINK + OFFSET LINK TOTAL LENGTH= 173" RIVETED CONSTRUCTION
17 - US60922 - CHAIN, HR DR,V, #80 DBL, 174", CL & OL, ONE BOX CONTAINS THE FOLLOWING: #80 DOUBLE STRAND 1" PITCH 172 PITCH + CONNECTING LINK + OFFSET LINK TOTAL LENGTH= 174" RIVETED CONSTRUCTION
18 - US48873003 - NUT,HEX,G2,PLATED, 3
Click to Enlarge
×
