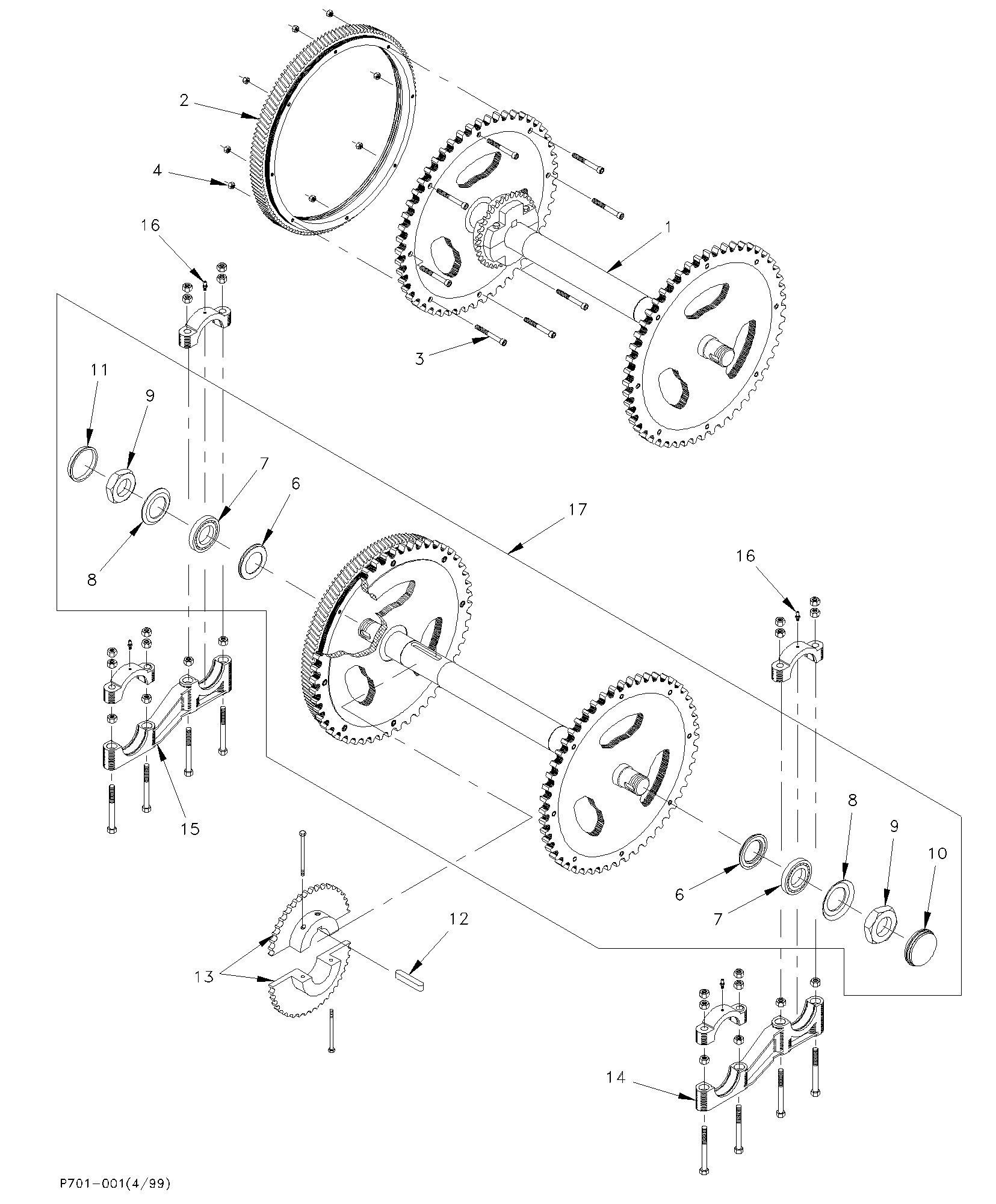

Ring gear & bull gear assy - glass balustrade
Select a Part for Details:
2 - US30030 - GEAR,LEFT 3E 4E 5E RING, SPLIT RING GEAR IS KM50040766G02
6 - US30024 - RETAINER,SEAL,BG&GB,L
7 - US44276 - BEARING,SPHERICAL,222 REPLACES US519620
12 - US59010 - KEY,BULL GEAR,CRYSTAL
13 - US67098 - SPROCKET,HR DR,BG,SGL #80
13 - US59011 - SPROCKET,HR DR,BG,SGL #100
13 - US60808 - SPROCKET,HR DR,BG,DBL #80
13 - US60923 - SPROCKET,HR DR,BG,DBL #80
13 - US68164 - SPROCKET,HR DR,BG,DBL #80
14 - US2887700L - BEARING SUPPORT, LH
15 - US2887700R - BEARING SUPPORT, RH
