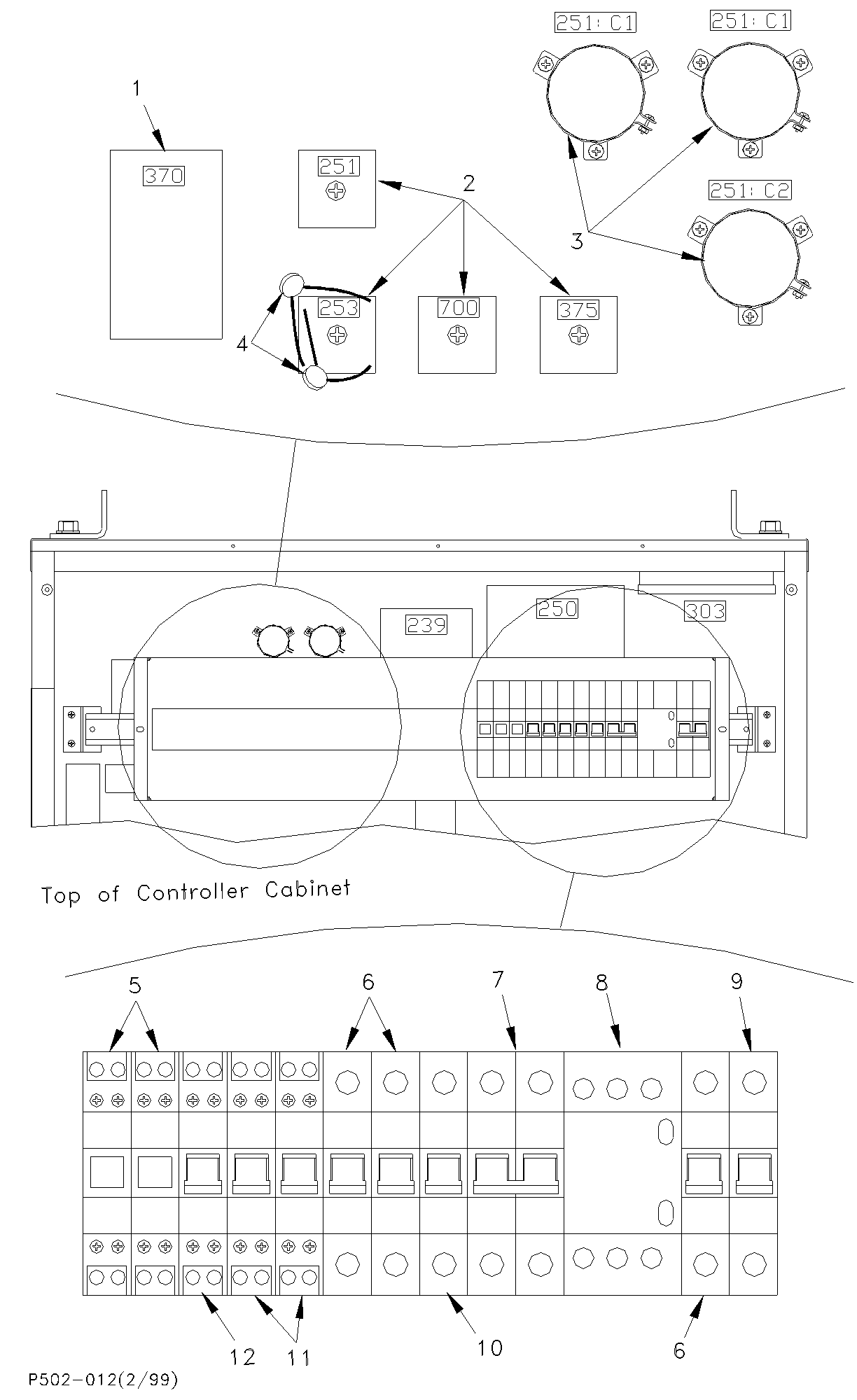

TMS50av: Electrical: top of controller
Select a Part for Details:
1 - US52936001 - ***REPLACED BY KM490015G01*** PCBOARD,BRAKE SNUBBER
2 - US46217100 - RECTIFIER,25A,1PH,PRV1000V
3 - US53037001 - CAPACITOR,ELEC,10000MFD,40
4 - US46353250 - VARISTOR,MOV,250-330, REPLACES KM236356
5 - US52944001 - SWITCH,PUSH-BUTTON,1NO-1NC NOTE: THIS CAN ALSO BE IDENTIFIED AS KM281538.
6 - US52958004 - ***REPLACED BY KM194076*** CIRCUIT BREAKER,1POLE,4A
7 - US52957004 - ***REPLACED BY KM261539*** BREAKER, 2POLE, 4A, 480VAC
8 - US52956001 - CIRCUIT BREAKER,3POLE,10A
9 - US52958001 - ***REPLACED BY KM194068*** CIRCUIT BREAKER,1POLE,1A
10 - US52958006 - CIRCUIT BREAKER,1POLE,6A
