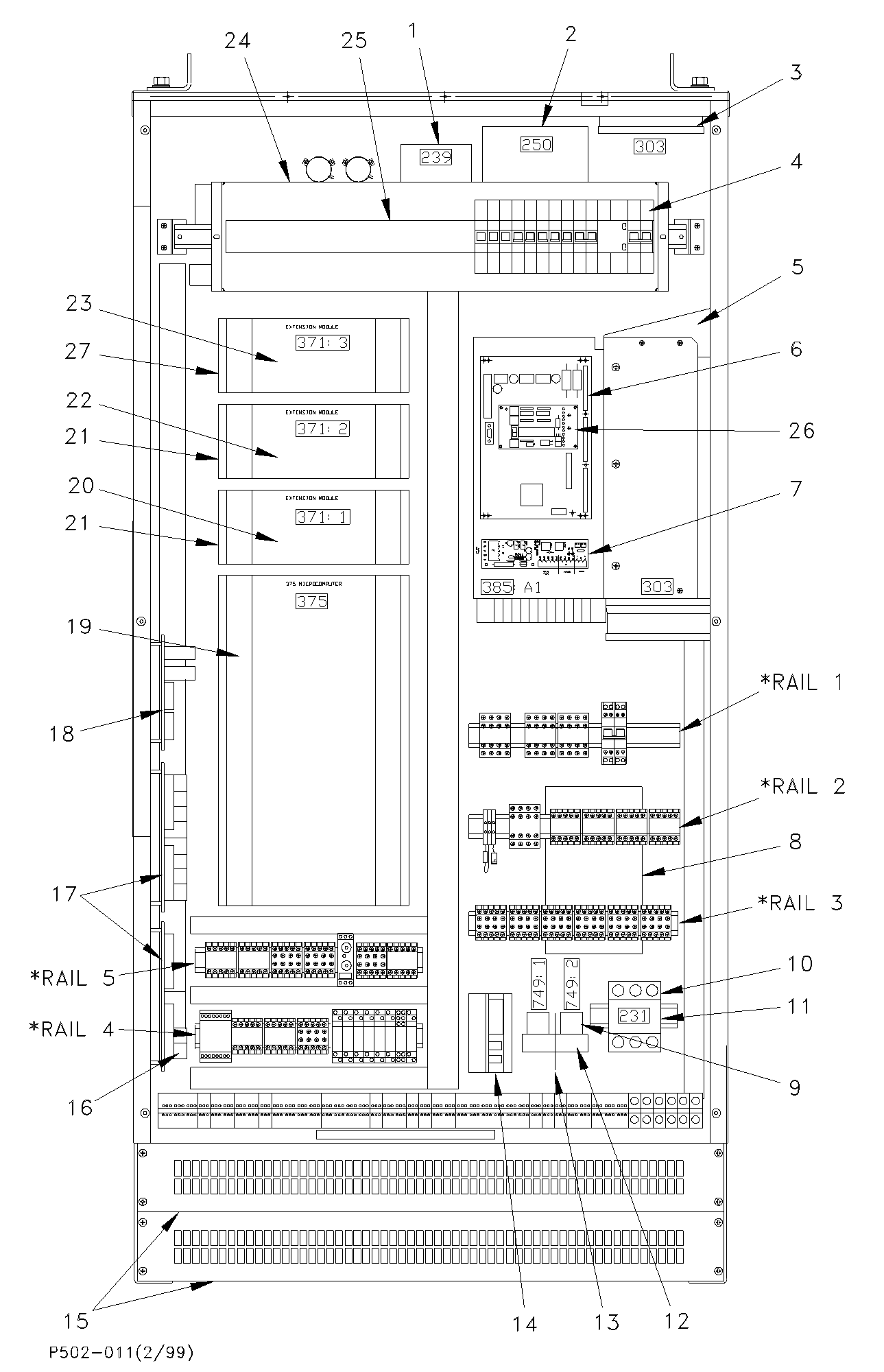

TMS50av: Controller: Complete
Select a Part for Details:
1 - US52950001 - TRANSFORMER,300VA,415/480V
2 - US52949001 - TRANSFORMER,1.5KVA,415/480
3 - US53041001 - ***REPLACED BY US516245*** FAN,200 CFM,230V,AC;
5 - US52933001 - ***REPLACED BY KM734855G01*** MODULE,V3F20,40A,415V,MX NOTE: The V3F20s drive will have the original proms in it for use with the Q1 machines. If the TMS50av controller MonoSpace has had the machine replaced with a Q2 machine than the proms in the old drive need to be moved to the new drive or a new set of Q2 machine proms purchased (KM1346288G01 ODD and KM1346288G02 EVEN).
6 - US53097002 - MOTION CONTROL BRD, V3F20S
7 - US53102001 - ***REPLACED BY KM612025G01*** LWD ADAPTER BOARD, V3F20S
8 - US52934040 - ***REPLACED BY KM264467*** FILTER,NETWORK,V3F20,40A
9 - US52946001 - BATTERY,12V,2.3AH/20HRS
10 - US52969001 - ***Replaced by KM259872*** CLAMP, RELAY RAIL,A/B
11 - US52962001 - ***REPLACED BY KM1332823*** RELAY,THERMAL OVRLD,17-25A
14 - US52937001 - PCBOARD,CHARGER MOTHERBRD
16 - US65952 - ***REPLACED BY US515831*** RELAY,PLUG-IN,24-VDC,4PDT
17 - US52940001 - ***REPLACED BY KM504260G01*** PCBOARD,RELAY INTERFACE
18 - US52939001 - ***REPLACED BY KM491167G02*** PCBOARD,BINARY DECODER
19 - US52929001 - ***REPLACED BY KM491171G01 *** MODULE,CONTROL,TMS50A
20 - US52931001 - ***REPLACED BY KM491174G01*** PLATE,COVER,EXP.MOD.371:1 -
21 - US52930001 - ***REPLACED BY KM490478G01*** MODULE,CONTROL EXPANSION
26 - KM477649G02 - USER INTERFACE BRD, V3F20S - REPLACES US53098002
Click to Enlarge
×
