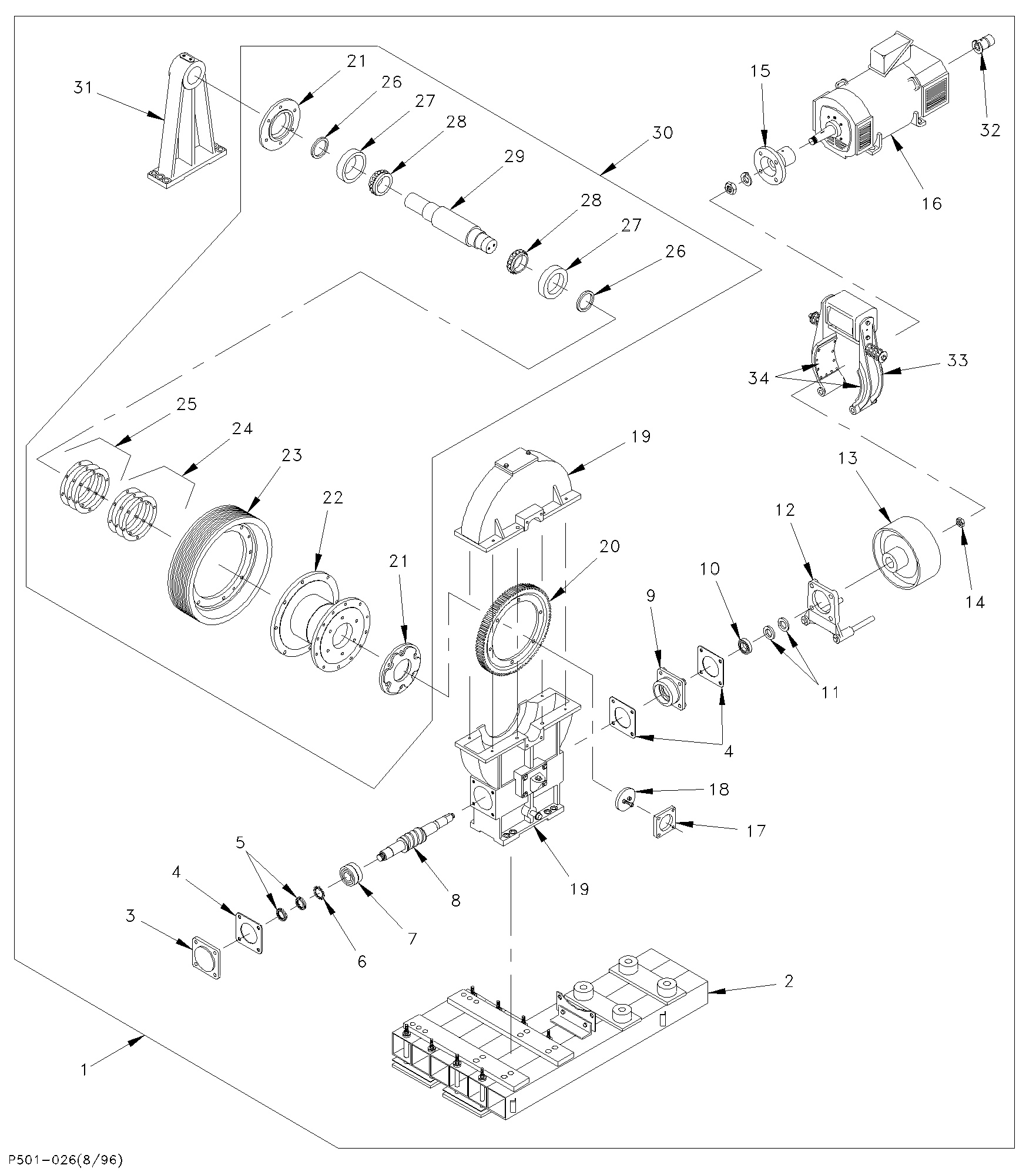

210 standard-mounted worm gear mach.
Select a Part for Details:
3 - US17626 - COVER,CASEHEAD,REAR,210E
4 - US18150 - GASKET,CASEHEAD,8"X8"
5 - US47286002 - NUT,LOCK,BEARING,2-31
6 - US47287002 - LOCKWASHER,BRG,ID=2-3
7 - US46333002 - BEARING,BALL,DUP,4.72
10 - US46332002 - BEARING,BALL,SGL,4.72
11 - US9096005 - OIL SEALS,O.D.=3.548"
13 - US1353300A - BRAKE PULLEY,210E MAC
14 - US4416 - NUT,HEX,JAM,1.75-10,W
22 - US17588 - CASTING,WEB,210E MACH
24 - US9087023 - SHIM,.007",MACH,11"OD
25 - US9087022 - SHIM,.005",MACH,11"OD
26 - US9096046 - OIL SEALS,O.D.=5.756"
27 - US46311008 - BEARING,CUP SGL,OD=7.
28 - US46312008 - BEARING,CONES,SGL,ID=
34 - US612500A - LINING,BRAKE,6x11,FIBER
