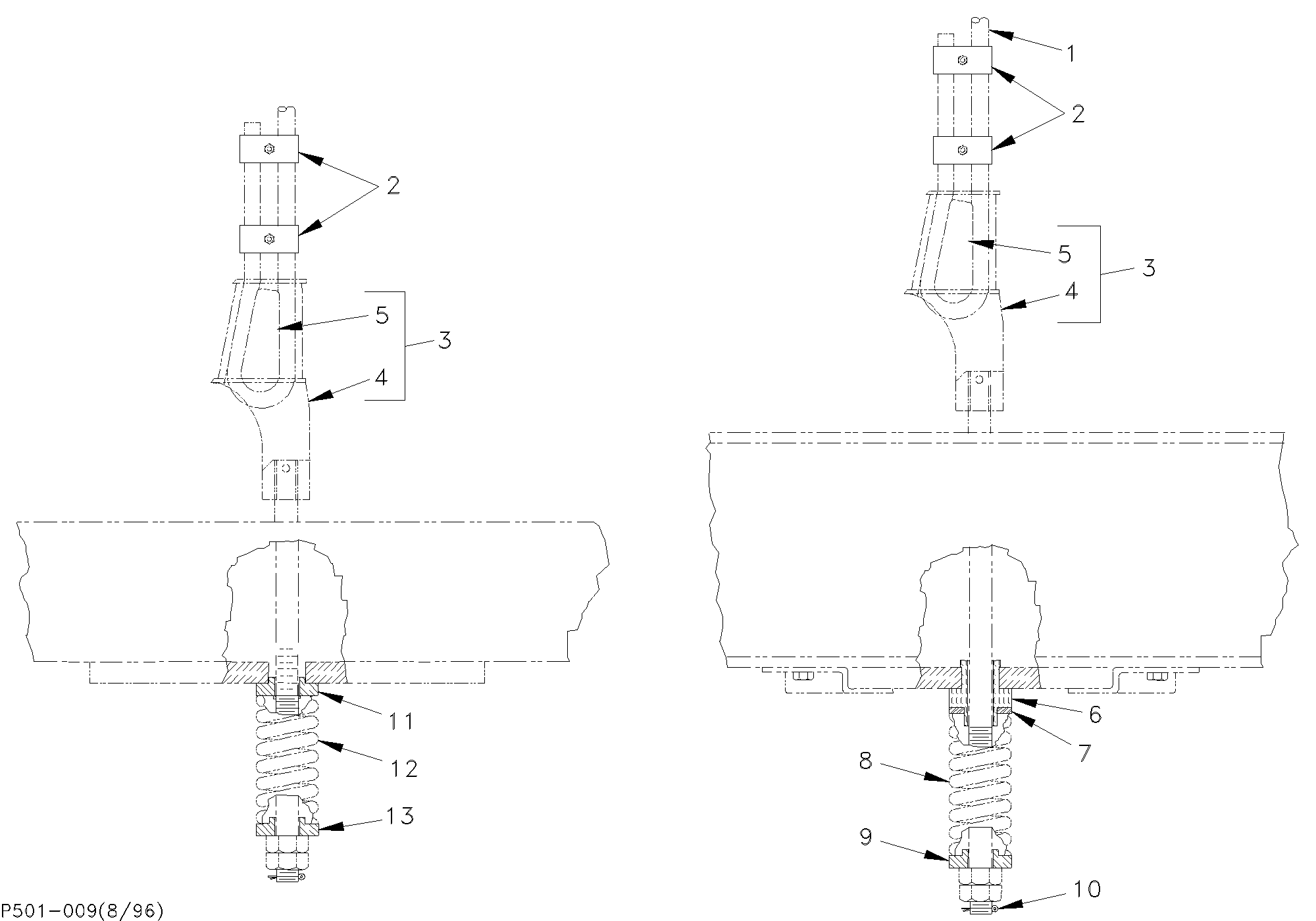

Shackle assembly: wedge
Select a Part for Details:
2 - US48790 - CLIP,RETAINER,.50OR.6
3 - USP33013001 - SOCKET,CABLE11/16&3/4,19.5 12" rod length, 19.5" overall length (WEDGE, SHACKLE, HOIST ROPE)
3 - USP33014001 - SOCKET,CABLE11/16&3/4,25.5 18" rod length, 25.5" overall length
6 - US61632 - ***REPLACED BY US61632001*** SLEEVE,SHACKLE ISOLATION
7 - US48683 - SPACER,ISO HITCH w/SP
9 - US61990 - WASHER,SPRING HITCH,1"CORE
11 - US12884 - WASHER,SPRING HITCH,1
12 - US2881114 - SPRING,COMP,2.56"ODx6
13 - US18318 - WASHER,SPRING HITCH,2
