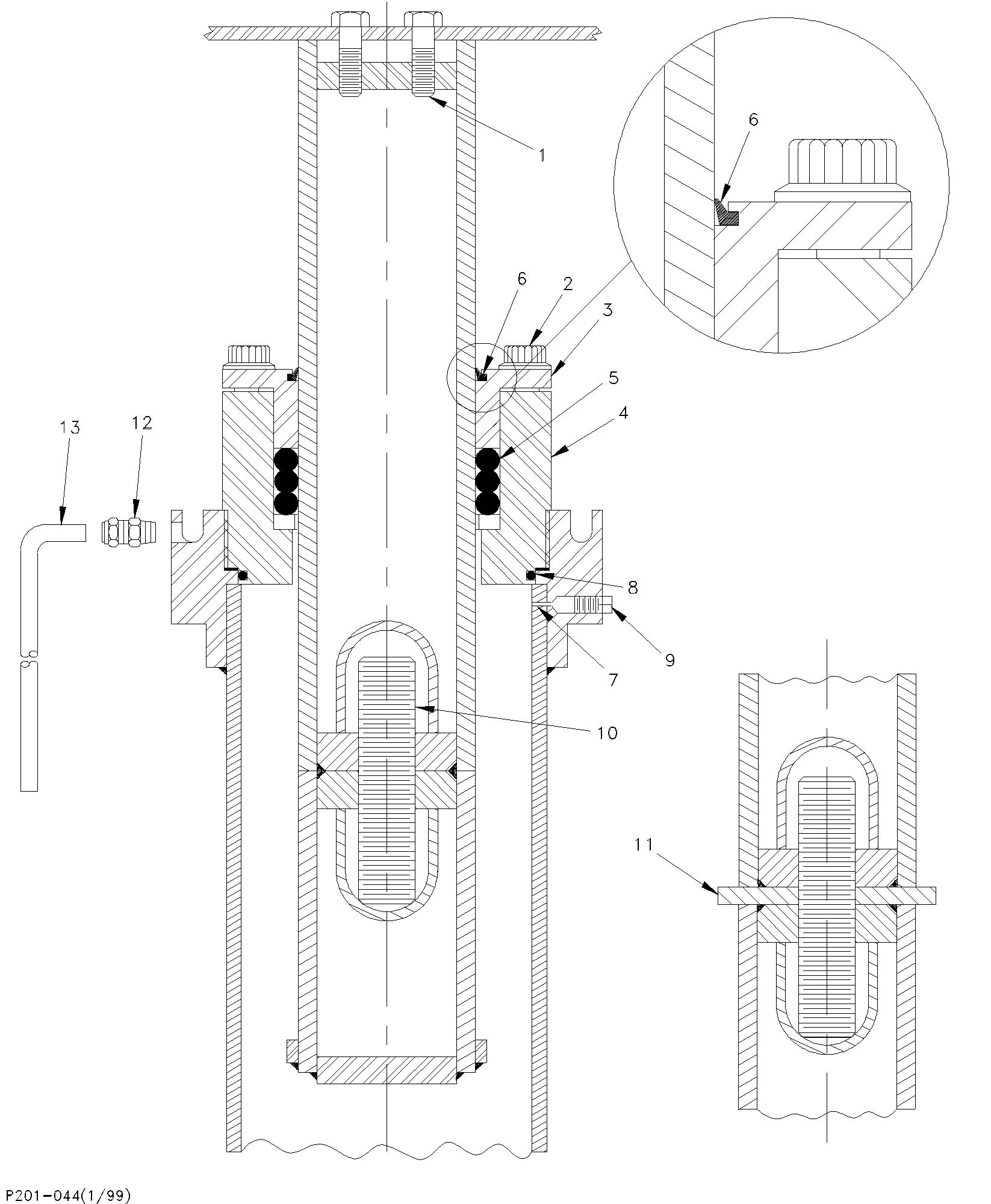

In-ground hydro jack assy
Select a Part for Details:
3 - US37020 - GLAND RING,BRNZ,4-1/2
0 - US37021 - GLAND RING,BRNZ,5-7/1
0 - US37023 - GLAND RING,BRNZ,6-1/2
5 - US33060 - RING,FILLER,4-3/8" PL
0 - US33061 - RING,FILLER,5-7/16"PL
0 - US33062 - RING,FILLER,6-1/2" PL
0 - US43300045 - PACKING,JACK,RND ROD,4'-5"
0 - US43300055 - ***REPLACED BY US43300*** PACKING,JACK,RND ROD,5'-3"
0 - US43300065 - ***REPLACED BY US43300*** PACKING,JACK,RND ROD,6'-1"
0 - US48712004 - JACK PACKING,SPLIT,4.46ID (REPLACES US502419002)
0 - US48712005 - JACK PACKING,SPLIT,5.52 REPLACES US502419003, US502419021 AND US48712023
7 - US37058 - GASKET,6" PIPE,6.550"
0 - US37059 - GASKET,8" PIPE,8.998"
8 - US16084014 - O-RING,6"OD,5-3/4"ID
0 - US16084041 - O-RING,8-1/4"OD,8"ID
9 - US37026 - PLUG,AIR BLEED,NPT,W/BALL
0 - USP14306 - ***NOT LISTED IN MKO2*** RING, STOP 5-1/2" PLUNGER
12 - US43293 - FITTING,3/8" OD TUBIN
13 - US43294001 - TUBING,POLYETHELENE,L
Click to Enlarge
×
