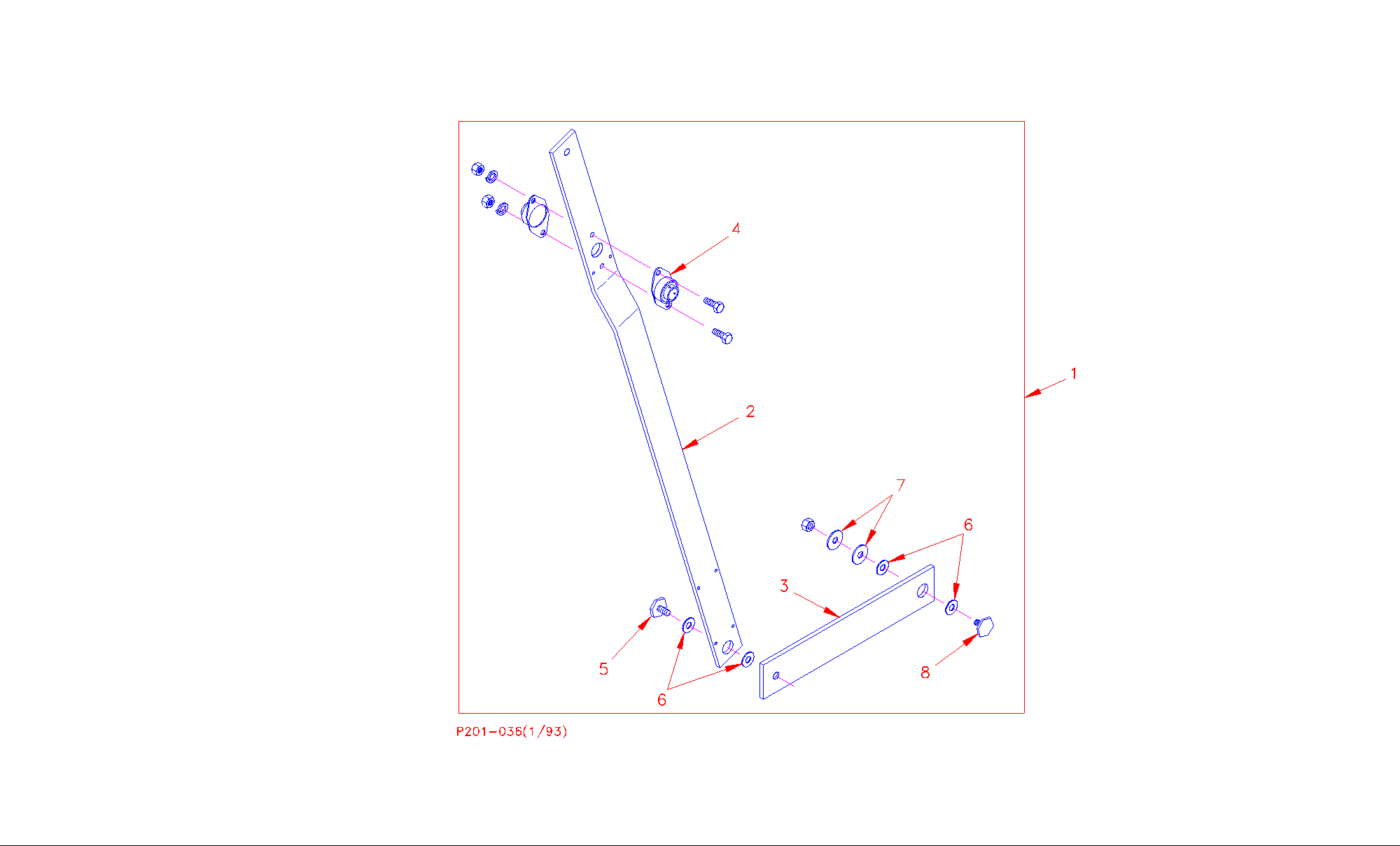

Door operators: long lever
Select a Part for Details:
1 - USP31444 - Lever, Long, Dr Oper 1-3/4, Components only: USP22107 long lever USP22112 link US101730 bearing x2
2 - USP22107 - ***NOT AVAIABLE AT THIS LEVEL*** LEVER,LONG,W/BEARING ASSY - SEE UPPER LEVEL ASSEMBLY. USED IN ASSEMBLIES - USP35026-001/002, USP35027-001/002
3 - USP22112 - ***NOT AVAIABLE AT THIS LEVEL*** LINK,DOOR OPER,w/BRG,12" - - , SEE UPPER LEVEL ASSEMBLY. - USED IN ASSEMBLIES: USP35026-001/002, USP35027-001/002, USP35028-001/002 & USP31281
4 - US101730 - BEARING ASSY,FLANGE,1
5 - US1293600A - PIN,HH,3/8-24 UNF,L=1
6 - US49115003 - WASHER,FLAT,0.812"OD, REPLACES US12935
7 - US58791 - WASHER,FLAT,1.5"ODx7/16"ID
8 - US12936 - PIN,HH,3/8-24 UNF L=1
