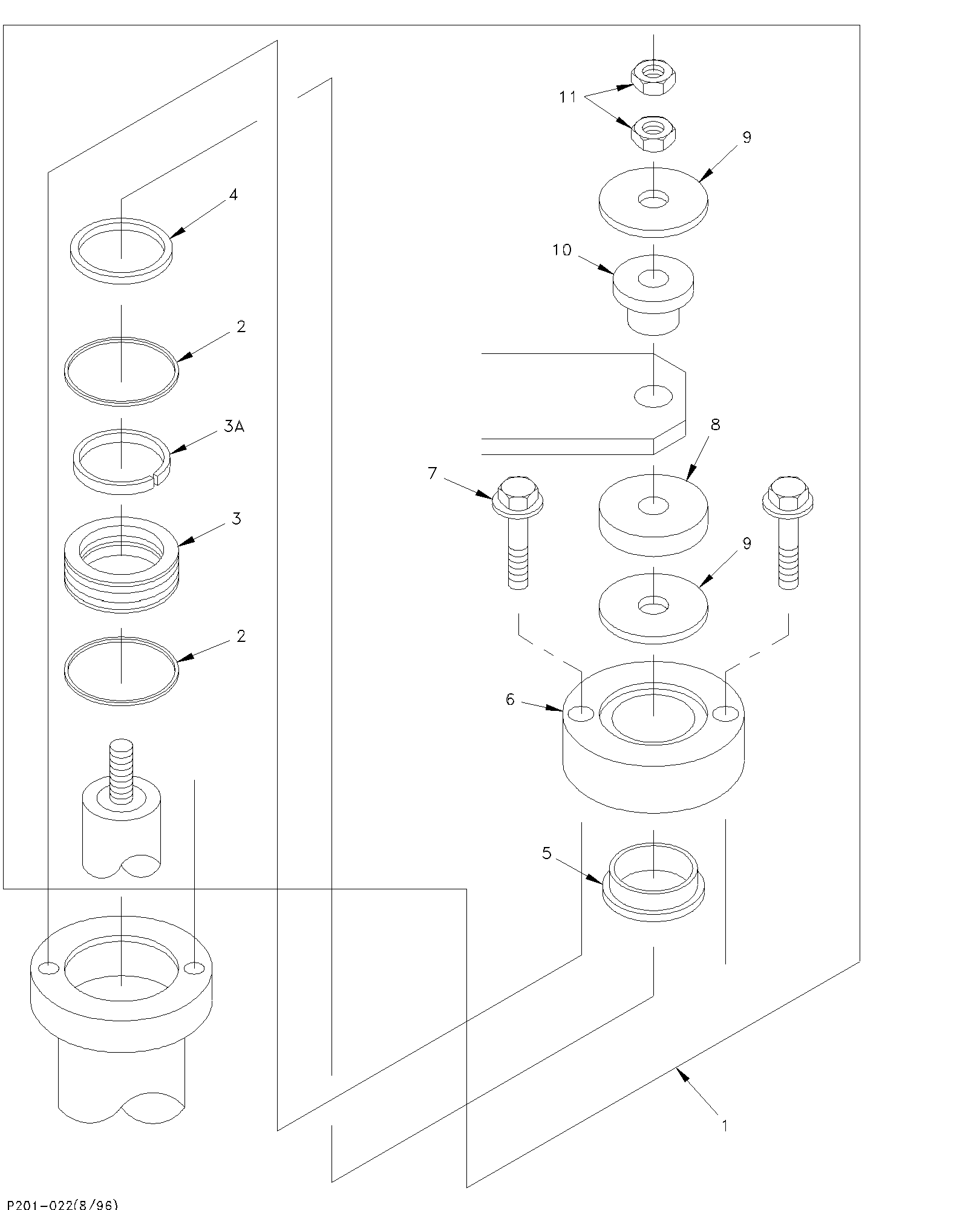

Holeless hydro jack assy
Select a Part for Details:
2 - US16084055 - O-RING,4-5/8"OD,4-3/8
0 - US51937 - RING,IMPACT,3"PLG,FOR BRG
0 - US51938 - RING,IMPACT,3.5PLG,FOR BRG
0 - US51939001 - BEARING, JACK HEAD,3"
0 - US51939002 - BEARING, JACK HEAD,3.5"
3 - US48747 - ***REPLACED BY US51937*** RING,IMPACT PISTON 3"-
0 - US51233001 - ***REPLACED BY US514785 (COMPLETE SET)*** PACKING SET,JACK,SOLID 3",
0 - US51233002 - ***REPLACED BY US514785002*** PACKING SET,JACK,SOLID 3.5
4 - US51940001 - ***REPLACED BY US514785*** PACKING JACK, SOLID 3"
0 - US51940002 - ***REPLACED BY US514785002*** PACKING JACK, SOLID 3.5"
0 - US48712001 - ***REPLACED BY US514785*** JACK PACKING,SPLIT,
0 - US48712002 - ***REPLACED BY US514785002*** JACK PACKING,SPLIT, 3
5 - US51570001 - RING,GLAND,WIPER,BEAR,3" REPLACES US48716001
0 - US51570002 - RING,GLAND,WIPER,BEAR,3.5"
6 - US51234 - CYLINDER HEAD,STUF BOX 3"
7 - US48700005 - SCREW,FLG/12PT,1/2-13,L=3"
8 - US51766 - PAD,ISOLATION,4DIA,.5W (REPLACES US48740)
9 - US51332 - WASHER,FLAT,4"ODx1.128"ID
10 - US48739 - SLEEVE,POLY-RUBBER,1-
0 - US37026 - PLUG,AIR BLEED,NPT,W/BALL
