Roller, upthrust 1.575 in. [40 mm] diameter

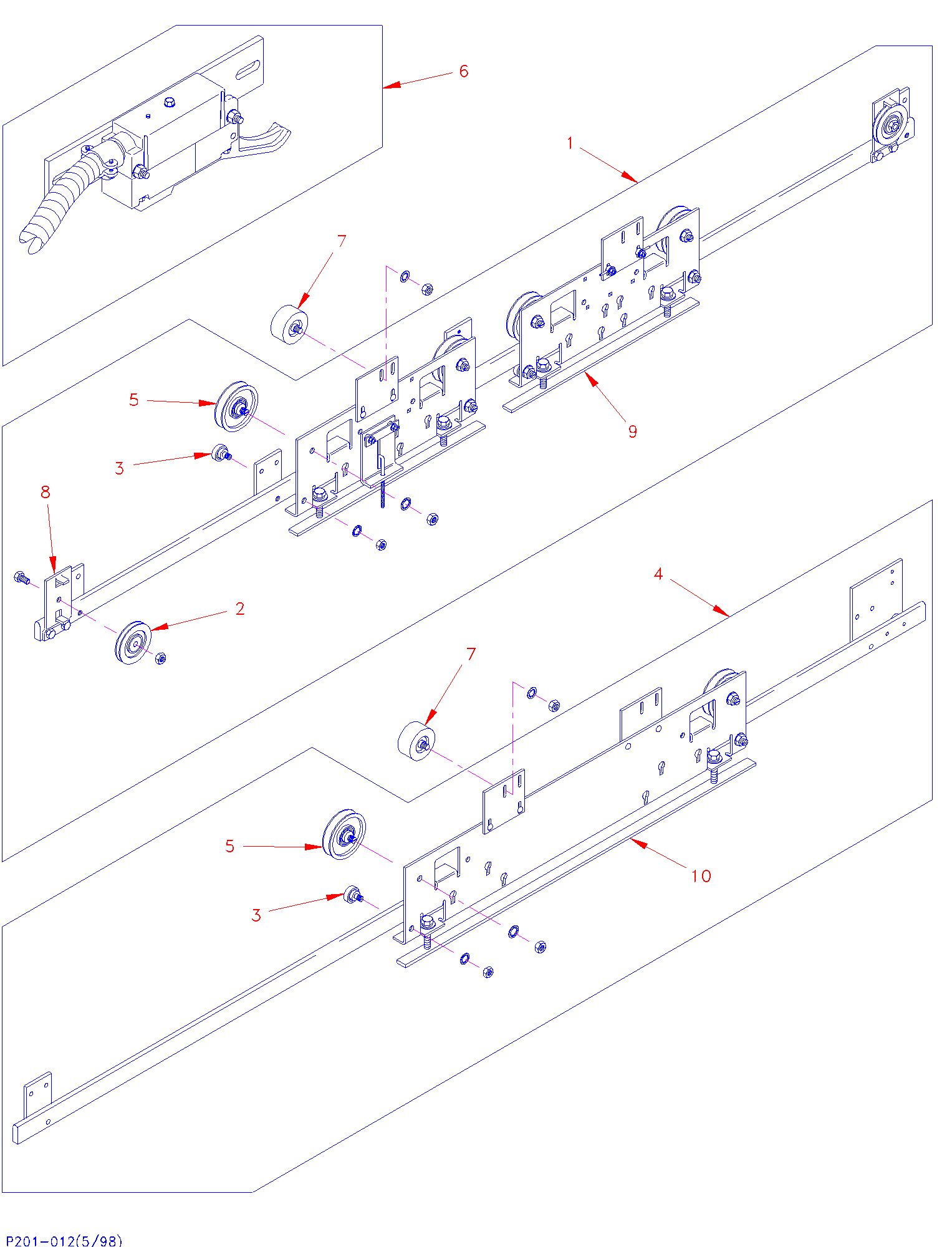

Select a Part for Details:
0 - USP24926 - Obsolete, complete replacement will require a ReNova MOD - Door hanger, car, PE-3 Center-opening, 42 inch width; RH
0 - USP31034 - SHEAVE,2.5,CABLE
0 - USP22237 - SHEAVE,3.25 RUNNING DIA.,POLW/ECC STUD
0 - US90744 - BAR,.25X.88X18.75,PE3,DOOR
1 - USP24925 - Obsolete, complete replacement will require a ReNova MOD - Door hanger, hoistway, PE-3 Center-opening
3 - USP22236 - ROLLER,UPTHRUST,1.575D
4 - USP24924001 - Door hanger, car, PE-3 Side-opening, 42 in., RH
4 - USP24924002 - Door hanger, car, PE-3 Side-opening, 42 in., LH
4 - USP24923001 - Door hanger, car, PE-3 Side-opening, 36 in., RH
4 - USP24923002 - Door hanger, car, PE-3 Side-opening, 36 in., LH
7 - USP24958 - ROLLER,GATE SWITCH,S/S,C/O REPLACES USP24960001
8 - US90699 - Support, sheave 3/16, 3.56L
10 - US90745 - Bar 1/4 x 7/8 x 34, PE-3, door
0 - USP24956 - Hardware, hanger mounting Car door, center-opening, single-slide, PE-3
0 - US90797001 - CABLE,HNGR,1SPD,36"C/O,PE3
0 - US90797002 - ***NO LONGER AVAILABLE - MAC*** CABLE,HNGR,1SPD,42C/O,PE3
0 - US90797003 - "CABLE,HNGR,1SPD,48""C/O,PE3"
