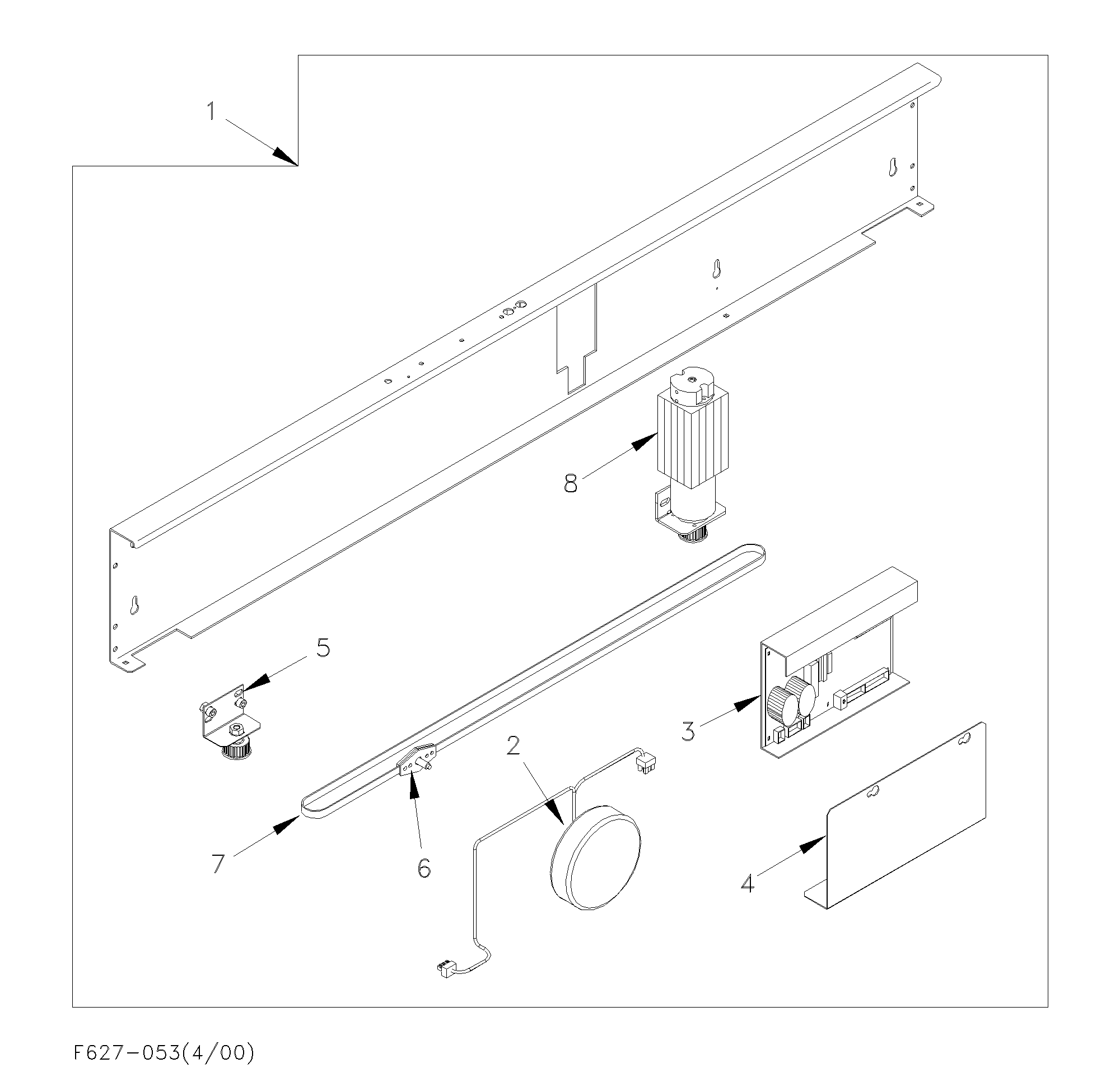

AMD door operator: center-opening
Select a Part for Details:
2 - US77591013 - ***REPLACED BY KM606805G02*** TRANSFORMER,AMD OPER DRV#2
3 - US77591012 - ***EPLACED BY KM606810G02*** BOARD,CONTROL,AMD,DRV 2.0 REPLACES KM601810G01
6 - US77591019 - ***REPLACED BY KM601345G01*** BRACKET,BELT CLUTCH,AMD
7 - US77591016 - BELT,TOOTH,DRV,AMDNA,AMD #PGGT-5MR,25,GL
8 - US77591001 - ***REPLACED BY KM601370G03*** MOTOR,G-BOXASSY,RH/CO,AMD
0 - US77591011 - SWITCH,MAGNET,AMD,W/2WIRES
0 - US77591040 - ***When depleted replaced by the following parts which are the motor end cap with the encoder: AMD 2.0 KM904310G01 AMD 1.5 and AMD 15 KM904210G01 AMD 1.0 and AMD 10 KM904200G01*** ENCODER,AMDNA,PUR
