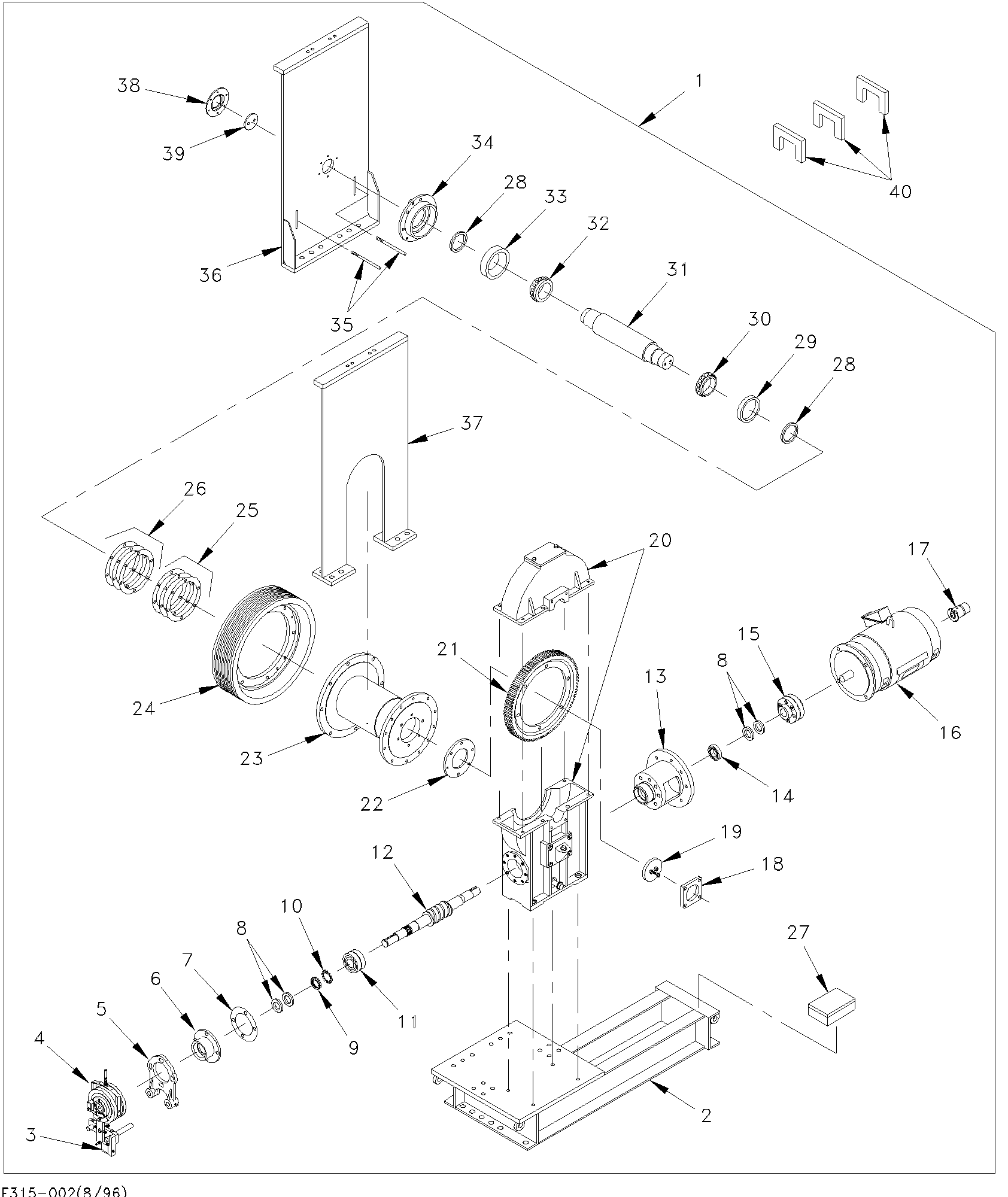

AC Worm gear drive machines: 208 basement, standard & mounted deflector w/ disc brake
Select a Part for Details:
0 - US91023 - ***REPLACED BY US63745*** BRAKE,DISC,M208,1.75"DIA,
3 - US62616 - LOAD CELL,250 LB,3MV/V
4 - US91134 - BRAKE,DISC,M210,1.772"DIA
0 - US63745 - BRAKE,DISC,1.75"DIA,SHAFT
7 - US18147 - GASKET,PAPER,8"OD,4-3
8 - US9096017 - OIL SEALS,O.D.=3.194"
9 - US47286002 - NUT,LOCK,BEARING,2-31
10 - US47287002 - LOCKWASHER,BRG,ID=2-3
11 - US46333002 - BEARING,BALL,DUP,4.72
14 - US46332001 - BEARING,BALL,SGL,3.54 REPLACES US46332003
15 - US90938 - COUPLING,MOTOR,1.875"DIA
17 - US62675004 - ***USE US63099004*** ENCODER, OPTICAL
23 - US40566 - WEB,208E MACH,BASEMENT
24 - US17694H34 - SHEAVE,26",V,1/2x6GRV
0 - US17694H46 - SHEAVE,26",V,5/8x6GRV
0 - US17696H46 - SHEAVE,30",V,5/8x6GRV15/16
25 - US9087023 - SHIM,.007",MACH,11"OD
26 - US9087022 - SHIM,.005",MACH,11"OD
28 - US9096024 - OIL SEALS,O.D.=5.004"
29 - US46311007 - BEARING,CUP SGL,OD=6.
30 - US46312007 - BEARING,CONES,SGL,ID=
32 - US46312004 - BEARING,CONES,SGL,ID=
33 - US46311004 - BEARING,CUP SGL,OD=7.
34 - US1345900A - ***NOT AVAILABLE*** COVER,BEARING,209E,11.5"OD
